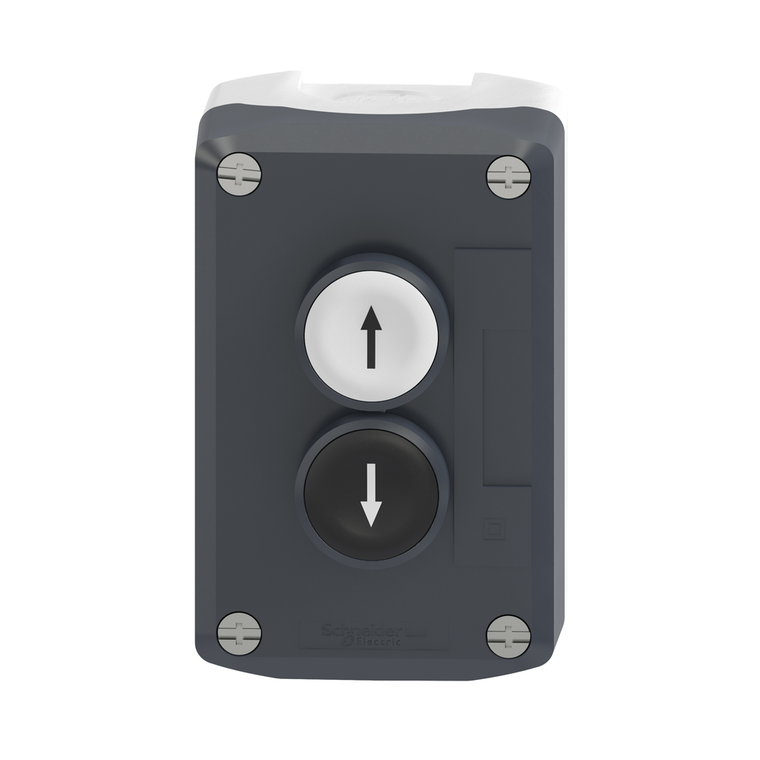

Schneider Electric XALD222 2 Push Buttons Cont. Box

Schneider Electric XALD222 2 Push Buttons Cont. Box

Schneider Electric
SKU:
XALD222
|
UPC:
3389110114164
Availability:
Factory stock
$53.66
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XALD dark grey control station is ideal to control simple hoists. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It is also resistant to chemicals and offers double insulation.
Additional Information
Contacts Material:
silver alloy (Ag/Ni)
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Range Of Product:
Harmony XALD
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection:
IK03 IEC 62262
Colour Of Cover:
dark grey RAL 7016)
Control Station Composition:
1 flush push-button, black 1 NO, white down arrow || 1 flush push-button, white 1 NO, black up arrow
Operating Force:
3.8 N NO changing electrical state
Device Short Name:
XALD
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Net Weight:
0.233 kg
Cable Entry:
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Ambient Air Temperature For Storage:
-40-70 °C
Warranty:
18 months
Positive Opening:
without
China Rohs Regulation:
X
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
complete control station
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ie] Rated Operational Current:
6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Reach Free Of Svhc:
Yes
Circularity Profile:
ENVEOLI1806010EN
Control Station Application:
two functions
Contact Operation:
slow-break
Operator Profile:
2 flush push-buttons
Toxic Heavy Metal Free:
Yes
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Material:
polycarbonate
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Sustainable Offer Status:
Green Premium product
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Product Destination:
for XB5 Ø 22 mm control and signalling units
Standards:
JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || UL 508 || IEC 60947-5-5 || JIS C8201-1
Marking Location:
marking on push-button
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Operation:
-40-70 °C
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP1806010EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Shock Protection Class:
class II IEC 60536
Protective Treatment:
TH
Colour Of Marking:
white marking when green, red or black caps || black marking when white caps
Colour Of Base Of Enclosure:
light grey RAL 7035)
Mechanical Durability:
10000000 cycles
Operators Description:
white ''up arrow'' 1 NO - black ''down arrow'' 1 NO
Rohs Exemption Information:
Yes
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Vibration Resistance:
5 gn 12-500 Hz)IEC 60068-2-6
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
