Schneider Electric XALD326H7 Control Station Xald Three Functions 1 N
Schneider Electric
$111.79
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

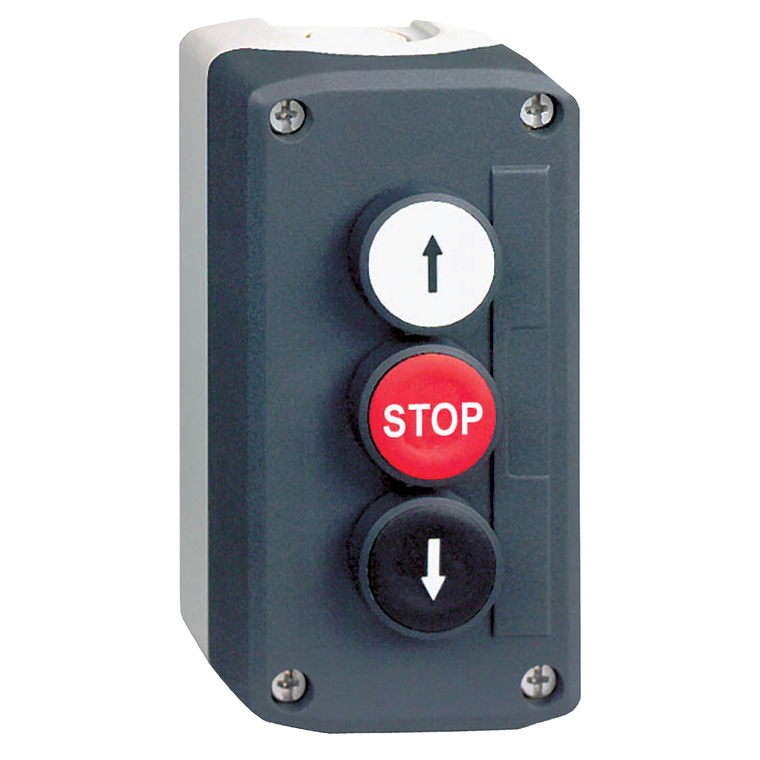

Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, white up arrow 1NO red STOP 1NC black down arrow 1NO
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Material:
- polycarbonate
- Environmental Disclosure:
- ENVPEP1806010EN
- Contact Operation:
- slow-break
- Circularity Profile:
- ENVEOLI1806010EN
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Certifications:
- CSA || UL Listed
- Colour Of Marking:
- black marking when white caps || white marking when green, red or black caps
- Rohs Exemption Information:
- Yes
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Protective Treatment:
- TH
- Control Station Application:
- three functions
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K || IP67
- Standards:
- CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-5-1 || UL 508 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Warranty:
- 18 months
- Device Short Name:
- XALD
- Colour Of Cover:
- dark grey RAL 7016)
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
- Vibration Resistance:
- 5 gn 12-500 Hz)IEC 60068-2-6
- Ik Degree Of Protection:
- IK03 IEC 62262
- Contacts Material:
- silver alloy (Ag/Ni)
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Shock Protection Class:
- class II IEC 60536
- Product Or Component Type:
- complete control station
- Operators Description:
- white ''up arrow'' 1 NO - red ''STOP'' 1 NC - black ''down arrow'' 1 NO
- Operating Force:
- 3.5 N NC changing electrical state || 3.8 N NO changing electrical state
- Control Station Composition:
- 1 flush push-button, black 1 NO, white down arrow || 1 flush push-button, white 1 NO, black up arrow || 1 flush push-button, red 1 NC STOP
- Product Destination:
- for XB5 Ã 22 mm control and signalling units
- Cable Entry:
- 2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Sustainable Offer Status:
- Green Premium product
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Mechanical Durability:
- 5000000 cycles
- Range Of Product:
- Harmony XALD
- Reach Free Of Svhc:
- Yes
- Marking Location:
- marking on push-button
- [Ie] Rated Operational Current:
- 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Mercury Free:
- Yes
- Colour Of Base Of Enclosure:
- light grey RAL 7035)
- Toxic Heavy Metal Free:
- Yes
- Net Weight:
- 0.298 kg
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Operator Profile:
- 3 flush push-buttons
- Positive Opening:
- with IEC 60947-5-1 appendix K
