Schneider Electric XALK178EH7 Emergency Stop Cont. Box No Nc Spec H7

Schneider Electric XALK178EH7 Emergency Stop Cont. Box No Nc Spec H7

Schneider Electric
SKU:
XALK178EH7
|
UPC:
3389119413930
$179.03
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

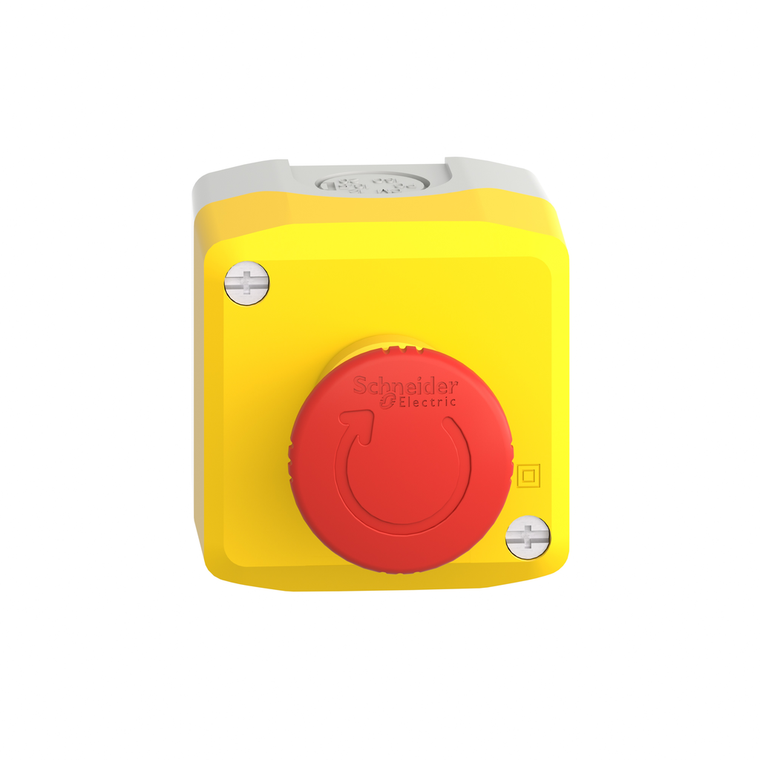

This Harmony XALK yellow control station for emergency stop function is ideal for your complete control station. It operates with turn to release mechanism and uses screw-clamp terminals. This control station with mushroom head push button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Additional Information
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Control Station Application:
emergency stop function || emergency switching off function
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free:
Yes
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
Cable Entry:
1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN/IEC 60947-1
Operators Description:
red unmarked 1 NO + 1 NC
Range Of Product:
Harmony XALK
Standards:
EN/ISO 13850 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || IEC 60364-5-53 || EN/IEC 60204-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-4
Ambient Air Temperature For Storage:
-40-70 °C
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
Product Destination:
for XB5 Ø 22 mm control and signalling units
Reset:
turn to release
Colour Of Cover:
yellow RAL 1021)
Material:
polycarbonate
Environmental Disclosure:
ENVPEP1806010EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Sustainable Offer Status:
Green Premium product
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ik Degree Of Protection:
IK03 EN 50102
Ambient Air Temperature For Operation:
-40-70 °C
Overvoltage Category:
class II IEC 60536
Tightening Torque:
0.8-1.2 N.m EN/IEC 60947-1
Mercury Free:
Yes
Vibration Resistance:
5 gn 12-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Circularity Profile:
ENVEOLI1806010EN
Device Short Name:
XALK
Product Or Component Type:
complete control station
Contact Operation:
slow-break
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Control Station Composition:
1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC unmarked
Product Certifications:
CSA || UL Listed
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Net Weight:
0.194 kg
Rohs Exemption Information:
Yes
Protective Treatment:
TH
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
China Rohs Regulation:
X
Operator Profile:
1 mushroom head push-button
Mechanical Durability:
300000 cycles
Contacts Material:
silver alloy (Ag/Ni)
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Colour Of Base Of Enclosure:
light grey RAL 7035)
Reach Free Of Svhc:
Yes
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Operating Force:
44 N NC + NO changing electrical state
Warranty:
18 months
[Ui] Rated Insulation Voltage:
600 V 3)EN/IEC 60947-1
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
Datasheet:
View
