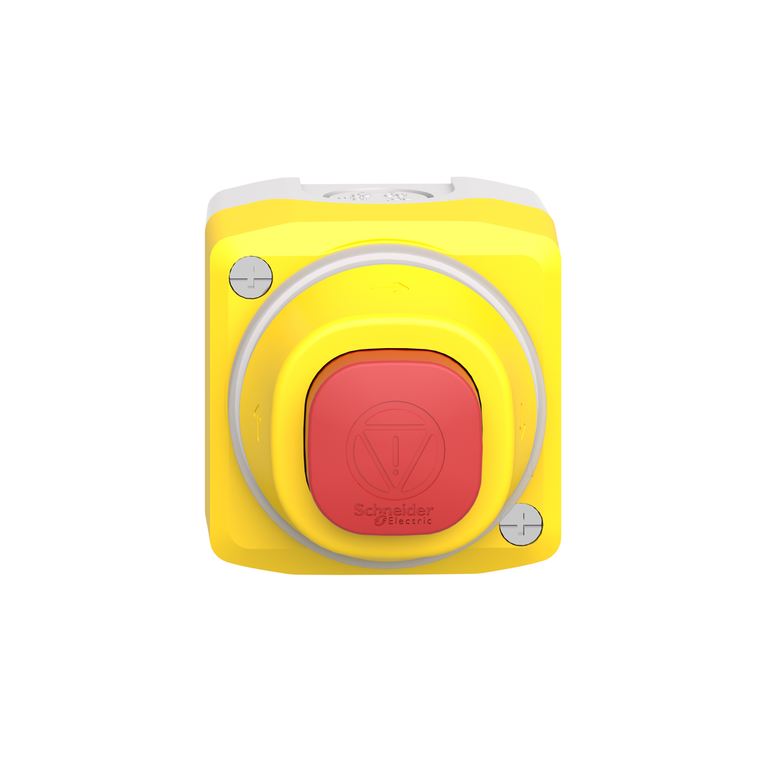

Schneider Electric XALK84W3BG Ill. Emergency Stop Control Box 24V W/R

Schneider Electric XALK84W3BG Ill. Emergency Stop Control Box 24V W/R

Schneider Electric
SKU:
XALK84W3BG
|
UPC:
3606489745660
$243.10
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Additional Information
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Mercury Free:
Yes
Device Short Name:
XALK
[Us] Rated Supply Voltage:
24 V AC/DC
Mechanical Durability:
300000 cycles
Resistance To Electrostatic Discharge:
4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
[Ui] Rated Insulation Voltage:
600 V 3)EN/IEC 60947-1
Contact Operation:
slow-break
Operators Description:
red unmarked 1 NO + 2 NC
Product Certifications:
UL Listed || CSA
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
Product Or Component Type:
complete control station
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Material:
polycarbonate
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN/IEC 60947-1
Tightening Torque:
0.8-1.2 N.m EN/IEC 60947-1
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Protective Treatment:
TH
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
Reset:
turn to release
Range Of Product:
Harmony XALK
Net Weight:
0.182 kg
Contacts Material:
silver alloy (Ag/Ni)
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ik Degree Of Protection:
IK05 EN 50102
Product Destination:
for XB5 Ø 22 mm control and signalling units
Environmental Disclosure:
ENVPEP1806010EN
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
Control Station Application:
emergency switching off function || emergency stop function
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Electrical Insulation Class:
class II IEC 61140
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Control Station Composition:
1 mushroom head push-button, red 1 NO + 2 NC
Circularity Profile:
ENVEOLI1806010EN
Cable Entry:
1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
Ambient Air Temperature For Storage:
-40-70 °C
Warranty:
18 months
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ambient Air Temperature For Operation:
-40-70 °C
Operator Profile:
red square 32 mm
Standards:
CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C 4520
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Colour Of Cover:
yellow RAL 1021)
Colour Of Base Of Enclosure:
light grey RAL 7035)
Operating Force:
44 N
