Schneider Electric XAPG39704 Metalenclosure
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

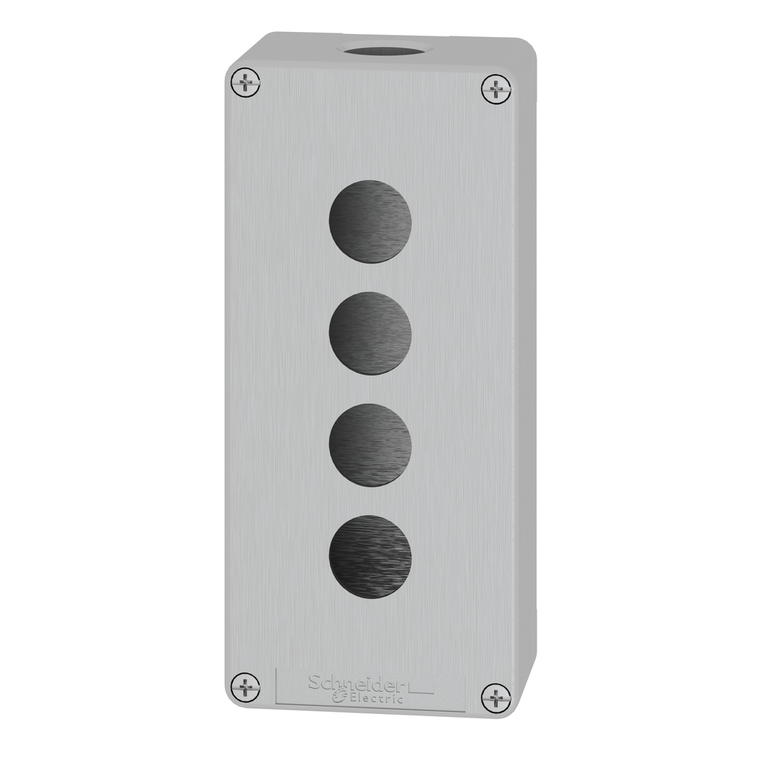

This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of 22mm pushbuttons. XAPG39704 is an empty enclosure with grey color (RAL7032). It has 4 cut-outs of diameter 22mm for 4 functions. Designed for industry, it offers operating simplicity, flexibility and robustness. Its protection index is IP65. It has a wide range of operating temperatures from -25°C to 70°C. Its dimensions are 175mm height, 80mm wide, 51.5mm deep. It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport. It is compatible with the Harmony XB4 and XB5 range of control and signaling units.
- Number Of Vertical Rows:
- 1
- Circularity Profile:
- N/A
- Cut-Out Dimensions:
- Ã 22 mm
- Thread Type:
- 3/4 NPT
- Sustainable Offer Status:
- Green Premium product
- Electrical Shock Protection Class:
- class I IEC 60536 || class I NF C 20-030
- Ambient Air Temperature For Operation:
- -25-70 °C
- Sale Per Indivisible Quantity:
- 1
- Number Of Cut-Out:
- 4 cut-outs
- Ip Degree Of Protection:
- IP65 IEC 60529
- Colour Of Base Of Enclosure:
- grey RAL 7032)
- Cad Overall Depth:
- 51.5 mm
- Net Weight:
- 0.860 kg
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Control Station Type:
- metal
- Number Of Horizontal Rows:
- 4
- Toxic Heavy Metal Free:
- Yes
- Device Short Name:
- XAPG
- Warranty:
- 18 months
- Colour Of Cover:
- grey RAL 7032)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Destination:
- for à 22 mm control and signalling units
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To Chemical Agents:
- special treatment can be obtained on request
- Cad Overall Height:
- 175 mm
- Cable Entry:
- cable gland || 1 x cable gland
- Cad Overall Width:
- 80 mm
- Ik Degree Of Protection:
- IK07 IEC 62262
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TH
- Reach Free Of Svhc:
- Yes
- Material:
- die cast zinc
- Compatibility Code:
- XAPG
- Range Of Product:
- Harmony XAP
- Product Or Component Type:
- die-cast empty control station
- Environmental Disclosure:
- ENVPEP2111017EN
- Datasheet:
- View
