Schneider Electric XARS8L12W System Led.2P Aux.12R Cable
Schneider Electric
$1,249.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XARS8L12W System Led.2P Aux.12R Cable
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

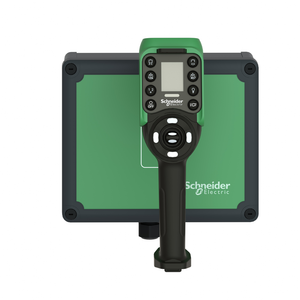

This wireless remote control system is part of the range wireless remote control system Harmony eXLhoist. It is a combination of remote control device (or transmitter ZART8L) and base station (or receiver ZARB12W) which transmits commands and information from the operator to the machine and vice versa by wireless transmission. The XARS system offers movement in 3 directions (for example hoist, bridge, and trolley) at 2 speeds (low and high) for each movement. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. Its degree of protection is IP 65 for the base station and IP 65 and NEMA 4 for the wireless control device. It weighs 2.1kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.
- Control Station Type:
- wireless
- Transmission Frequency:
- 2.4 GHz
- Electromagnetic Compatibility:
- resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 || resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2 || resistance to radiated electromagnet
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony eXLhoist
- Number Of Channels:
- 50
- Control Station Application:
- stop function SIL 2 maximum can reach PL d/category 3)IEC 62061 || stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1 || emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061 || emergency stop function SIL 3 maximum
- Communication Network Type:
- wireless bluetooth low energy
- China Rohs Regulation:
- X
- Product Or Component Type:
- control station
- Device Short Name:
- XARS
- Product Specific Application:
- material handling || hoisting applications
- Circularity Profile:
- ENVEOLI1403029EN
- Cable Entry:
- cable gland
- Operating Distance:
- 100 m in free air
- Relative Humidity:
- 0-95 % -20-45 °C storage
- Product Certifications:
- CE || UL || CSA || C-tick || JIS || KC || EAC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Standards:
- IEC 60204-1 safety || ISO 13849-1 safety || IEC 62061 safety || IEC 61508 safety || ISO 13850 safety || IEC 60204-32 hoisting applications || ETSI EN 301 489-1 radio || ETSI EN 301 489-3 radio || ETSI EN 301 489-17 radio || ETSI EN 300 440-2 radio ||
- Radio Agreement:
- ANATEL || ARIB || FCC || ICASA || SRRC || RSS
- Environmental Disclosure:
- ENVPEP1403029EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Kit Composition:
- remote control || base station
- Brochure:
- View
- Datasheet:
- View
