Schneider Electric XARSK8D18W Wireless Remote Station Kit
Schneider Electric
$1,943.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XARSK8D18W Wireless Remote Station Kit

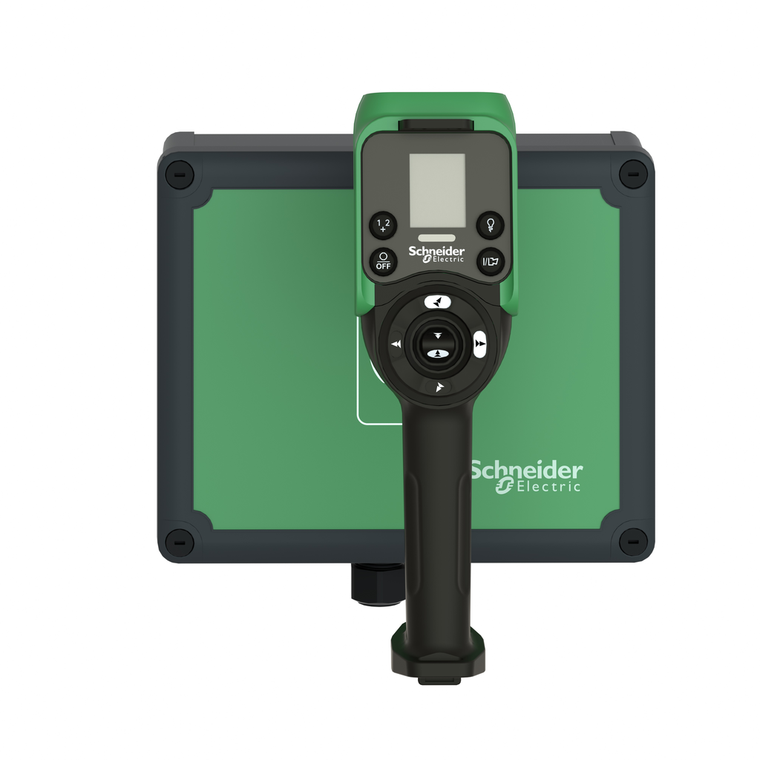

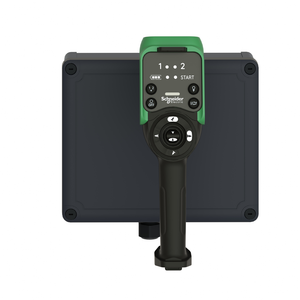

This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It has motion function and limiter protection function. Its schematic is clearly distinguishable thanks to clear colors It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments The product is composed of a remote ZART8D , a base ZARB18W , a charger , a shoulder belt , a CABLE USB/RJ45 and a config software High performance International standards & certifications (IP69K, IK03, Type 4X)
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Device Short Name:
- XARS
- Product Specific Application:
- hoisting applications || material handling
- Kit Composition:
- remote control || base station || shoulder belt || cable || configuration software
- Product Or Component Type:
- control station
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1403029EN
- Relative Humidity:
- 0-95 % -20-45 °C storage
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Control Station Type:
- wireless
- Product Certifications:
- CE || UL || CSA || C-tick || JIS || KC || EAC
- Control Station Application:
- stop function SIL 2 maximum can reach PL d/category 3)IEC 62061 || stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1 || emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061 || emergency stop function SIL 3 maximum
- Range Of Product:
- Harmony eXLhoist
- Communication Network Type:
- wireless bluetooth low energy
- Electromagnetic Compatibility:
- resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 || resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2 || resistance to radiated electromagnet
- Cable Entry:
- cable gland
- Transmission Frequency:
- 2.4 GHz
- China Rohs Regulation:
- X
- Operating Distance:
- 100 m in free air
- Radio Agreement:
- SRRC || RSS || ARIB || ANATEL || FCC || ICASA
- Number Of Channels:
- 50
- Environmental Disclosure:
- ENVPEP1403029EN
- Standards:
- IEC 60204-1 safety || ISO 13849-1 safety || IEC 62061 safety || IEC 61508 safety || ISO 13850 safety || IEC 60204-32 hoisting applications || ETSI EN 301 489-1 radio || ETSI EN 301 489-3 radio || ETSI EN 301 489-17 radio || ETSI EN 300 440-2 radio ||
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
