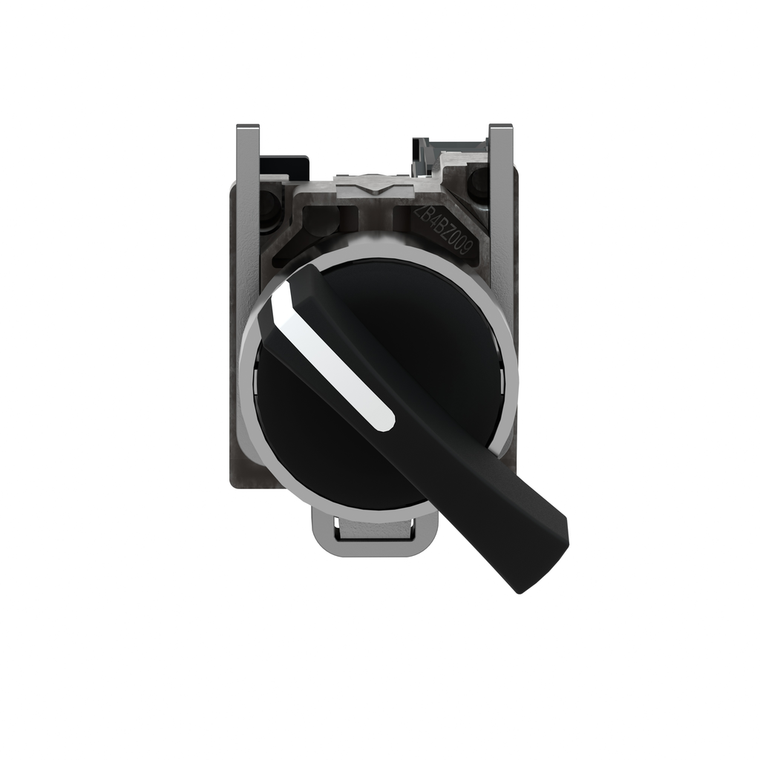

Schneider Electric XB4AS2 22Mm 3 Pos Sel Sw

Schneider Electric XB4AS2 22Mm 3 Pos Sel Sw

Schneider Electric
SKU:
XB4AS2
|
UPC:
785901553922
$51.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This selector switch provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Additional Information
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Terminals Description Iso N°1:
(3-4)NO
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Protective Treatment:
TH
Ambient Air Temperature For Storage:
-40-70 °C
Depth:
68 mm
Width:
30 mm
Circularity Profile:
ENVEOLI1808008EN
Standards:
IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-5 || JIS C8201-5-1 || IEC 60947-5-4 || UL 508 || JIS C8201-1
Shape Of Signaling Unit Head:
round
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Environmental Disclosure:
ENVPEP1808008EN
Product Or Component Type:
selector switch
Contacts Material:
silver alloy (Ag/Ni)
Contacts Type And Composition:
1 NO
Mercury Free:
Yes
Contacts Usage:
standard contacts
Mounting Diameter:
22 mm
Rohs Exemption Information:
Yes
Type Of Operator:
stay put
Positive Opening:
without
Operator Position Information:
2 positions 90°
Contact Operation:
slow-break
Ambient Air Temperature For Operation:
-25-70 °C
Device Presentation:
complete product
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Ip Degree Of Protection:
IP69K IEC 60529
Sale Per Indivisible Quantity:
1
China Rohs Regulation:
X
Product Certifications:
LROS (Lloyds register of shipping) || BV || CSA || UL || DNV || GL
Bezel Material:
chromium plated metal
Torque Value:
0.14 N.m NO changing electrical state
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mechanical Durability:
1000000 cycles
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Fixing Collar Material:
zamak
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Overvoltage Category:
class I IEC 60536
Height:
47 mm
Range Of Product:
Harmony XB4
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Device Short Name:
XB4
Operator Profile:
black standard handle
Sustainable Offer Status:
Green Premium product
Net Weight:
0.095 kg
Datasheet:
View
