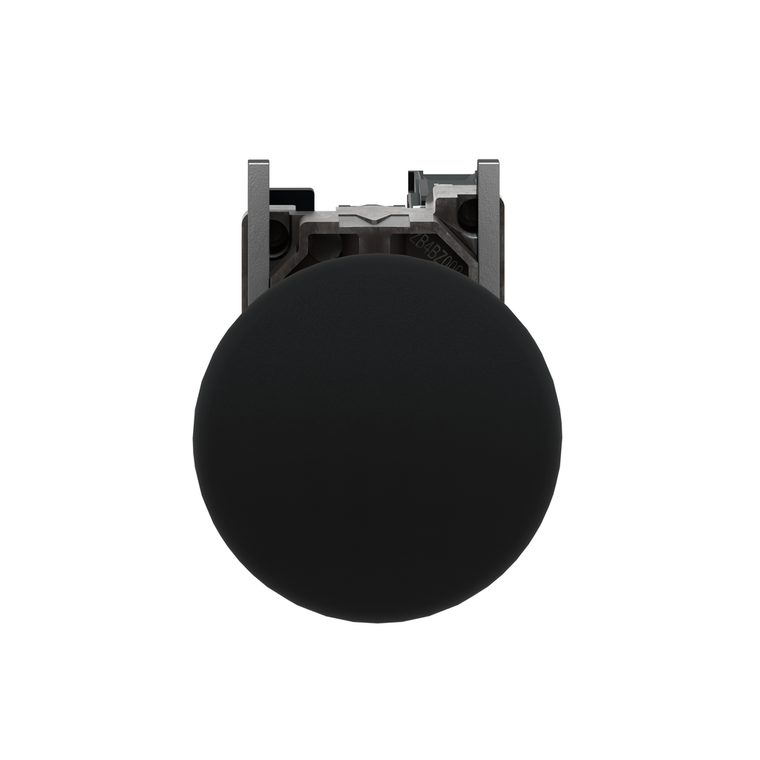

Schneider Electric XB4BC21 Pushbutton
Schneider Electric
$41.16
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4 40mm mushroom head modular black push button operates with a spring return / impulse mechanism. It has a metal bezel. This 40mm mushroom shaped push button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Fixing Collar Material:
- zamak
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Operating Force:
- 3.8 N NO changing electrical state
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Usage:
- standard contacts
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- XB4
- Type Of Operator:
- spring return
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1
- Product Certifications:
- DNV || CSA || UL Listed || GL || BV || LROS (Lloyds register of shipping)
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Mechanical Durability:
- 5000000 cycles
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Overvoltage Category:
- class I IEC 60536
- Contacts Type And Composition:
- 1 NO
- Shock Resistance:
- 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Offer Status:
- Green Premium product
- Contact Operation:
- slow-break
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- chromium plated metal
- Product Or Component Type:
- push-button
- Device Presentation:
- complete product
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB4
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- China Rohs Regulation:
- X
- Net Weight:
- 0.122 kg
- Environmental Disclosure:
- ENVPEP1808008EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Rohs Exemption Information:
- Yes
- Positive Opening:
- without
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Mounting Diameter:
- 22 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- black mushroom à 40 mm, unmarked
- Contacts Material:
- silver alloy (Ag/Ni)
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Sale Per Indivisible Quantity:
- 1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Head Type:
- standard
- Operating Travel:
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Ik Degree Of Protection:
- IK06 IEC 50102
