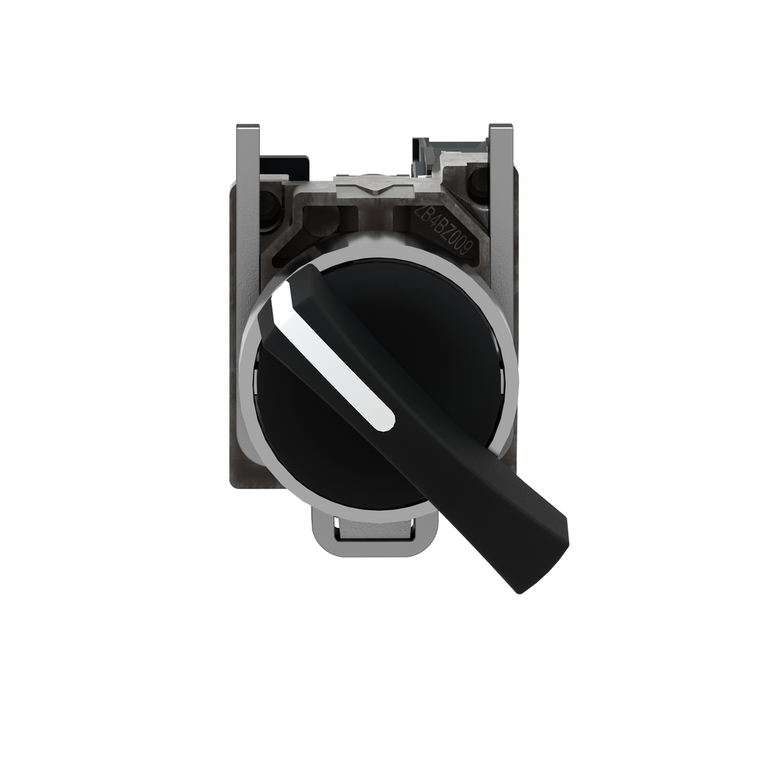

Schneider Electric XB4BJ21 Selector Switch
Schneider Electric
$51.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XB4BJ21 Selector Switch
This Harmony XB4 long handle modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
- China Rohs Regulation:
- X
- Terminals Description Iso N°1:
- (13-14)NO
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Operator Position Information:
- 2 positions 90°
- Width:
- 30 mm
- Torque Value:
- 0.14 N.m NO changing electrical state
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Depth:
- 68 mm
- Head Type:
- standard
- Device Presentation:
- complete product
- Contacts Material:
- silver alloy (Ag/Ni)
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Positive Opening:
- without
- Range Of Product:
- Harmony XB4
- Reach Free Of Svhc:
- Yes
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Diameter:
- 22 mm
- Product Or Component Type:
- selector switch
- Warranty:
- 18 months
- Overvoltage Category:
- class I IEC 60536
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2
- Toxic Heavy Metal Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sale Per Indivisible Quantity:
- 1
- Operator Profile:
- black long handle
- Contacts Type And Composition:
- 1 NO
- Environmental Disclosure:
- ENVPEP1808008EN
- Mercury Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Net Weight:
- 0.096 kg
- Fixing Collar Material:
- zamak
- Circularity Profile:
- ENVEOLI1808008EN
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Contact Operation:
- slow-break
- Bezel Material:
- chromium plated metal
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Device Short Name:
- XB4
- Height:
- 48 mm
- Mechanical Durability:
- 1000000 cycles
- Contacts Usage:
- standard contacts
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Type Of Operator:
- stay put
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Standards:
- IEC 60947-5-5 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-4 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Protective Treatment:
- TH
- Product Certifications:
- GL || UL || CSA || BV || DNV || LROS (Lloyds register of shipping)
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ip Degree Of Protection:
- IP69 || IP69K || IP67 IEC 60529
