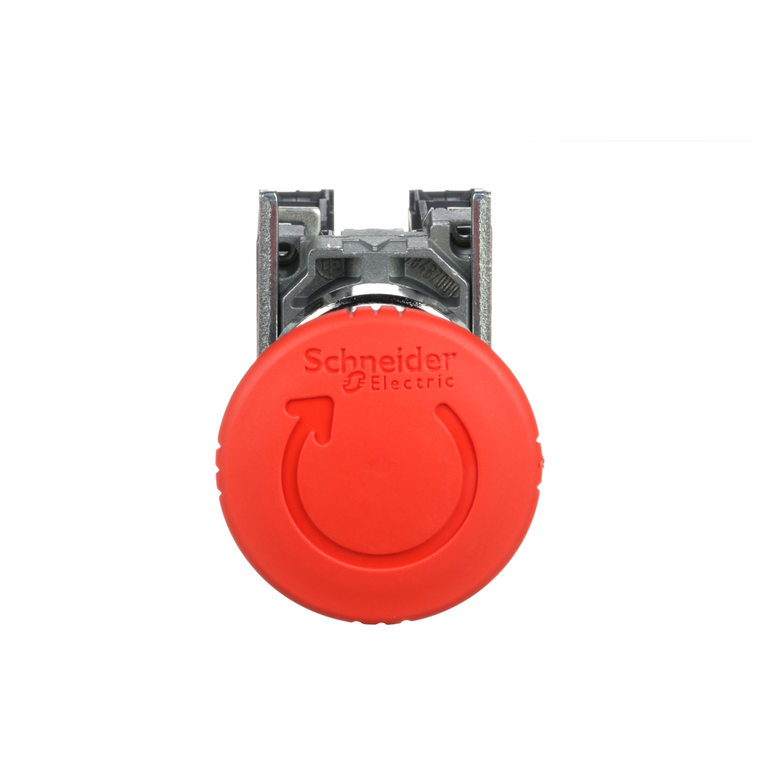

Schneider Electric XB4BS8445 Emergency Stop

Schneider Electric XB4BS8445 Emergency Stop

Schneider Electric
SKU:
XB4BS8445
|
UPC:
3389110887051
$165.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Additional Information
Shape Of Signaling Unit Head:
round
Ambient Air Temperature For Operation:
-40-70 °C
Sustainable Offer Status:
Green Premium product
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Mounting Diameter:
22 mm
Operating Force:
44 N
Depth:
82 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Free Of Svhc:
Yes
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Device Presentation:
complete product
Protective Treatment:
TH
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Electrical Shock Protection Class:
class I IEC 60536
Circularity Profile:
ENVEOLI2201004EN
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Product Certifications:
BV || GL || LROS (Lloyds register of shipping) || DNV || CSA || UL Listed
Mechanical Durability:
300000 cycles
Standards:
IEC 60204-1 || IEC 60947-1 || UL 508 || IEC 60364-5-53 || ISO 13850 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-5 || JIS C8201-1
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Range Of Product:
Harmony XB4
Reset:
turn to release
Type Of Operator:
trigger action and mechanical latching
Head Type:
standard
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Height:
47 mm
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Sale Per Indivisible Quantity:
1
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contacts Material:
silver alloy (Ag/Ni)
Contact Operation:
slow-break
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Fixing Collar Material:
zamak
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Ambient Air Temperature For Storage:
-40-70 °C
Mercury Free:
Yes
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Toxic Heavy Metal Free:
Yes
Device Short Name:
XB4
Terminals Description Iso N°1:
(13-14)NO
Contacts Usage:
standard contacts
Environmental Disclosure:
ENVPEP2201004EN
Product Or Component Type:
emergency switching off push-button || emergency stop push-button
Ik Degree Of Protection:
IK06 IEC 50102
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Width:
40 mm
Net Weight:
0.13 kg
Positive Opening:
with IEC 60947-5-1 appendix K
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Operator Profile:
red mushroom Ø 40 mm, unmarked
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Bezel Material:
chromium plated metal
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Warranty:
18 months
