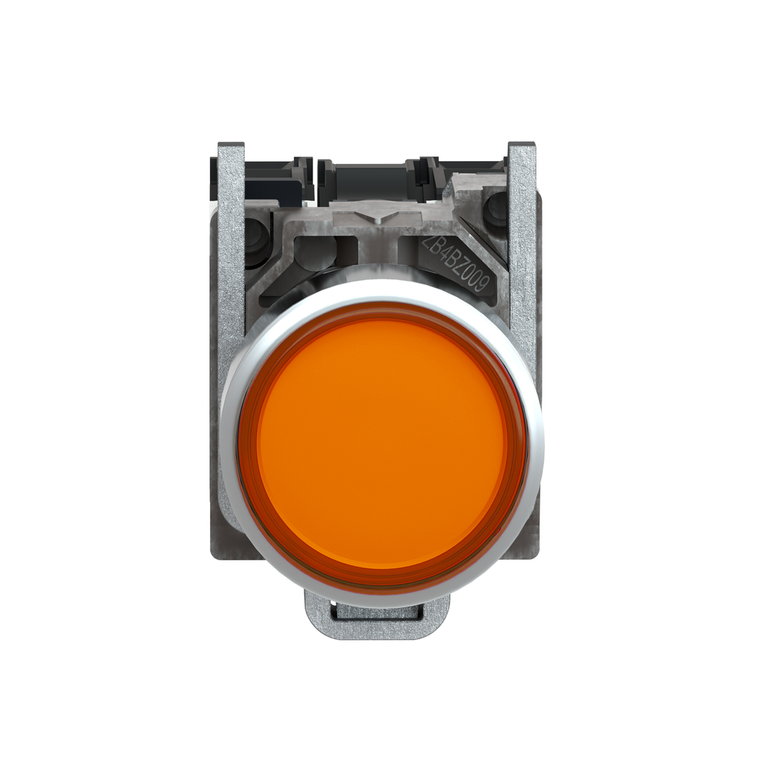

Schneider Electric XB4BW35G5 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB4BW35G5 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BW35G5

UPC:

3389110892109

MPN:

Condition:

New

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Height:

47 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Terminals Description Iso N°1:

(13-14)NO || (21-22)NC

Device Presentation:

complete product

Electrical Shock Protection Class:

class I IEC 60536

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Shape Of Signaling Unit Head:

round

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Ambient Air Temperature For Storage:

-40-70 °C

Positive Opening:

with IEC 60947-5-1 appendix K

Width:

30 mm

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Warranty:

18 months

Range Of Product:

Harmony XB4

Operator Additional Information:

with plain lens

Head Type:

standard

Light Source:

universal LED

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Fixing Collar Material:

zamak

Mounting Diameter:

22 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Rohs Exemption Information:

Yes

Product Certifications:

CSA || BV || GL || UL Listed || LROS (Lloyds register of shipping) || DNV

Electromagnetic Emission:

class B IEC 55011

Depth:

101 mm

Sale Per Indivisible Quantity:

1

Standards:

IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-5 || IEC 60947-5-4 || UL 508 || JIS C8201-1

Device Short Name:

XB4

Circularity Profile:

ENVEOLI1808008EN

Mechanical Durability:

10000000 cycles

Service Life:

100000 h at rated voltage and 25 °C

Product Or Component Type:

illuminated push-button

Signalling Type:

steady

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Contact Operation:

slow-break

Mercury Free:

Yes

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Type Of Operator:

spring return

Current Consumption:

14 mA

Environmental Disclosure:

ENVPEP1808008EN

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Supply Voltage Limits:

100-132 V AC

Ik Degree Of Protection:

IK06 IEC 50102

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Bezel Material:

chromium plated metal

Ambient Air Temperature For Operation:

-40-70 °C

Bulb Base:

integral LED

Net Weight:

0.097 kg

Sustainable Offer Status:

Green Premium product

Contacts Type And Composition:

1 NO + 1 NC

Protective Treatment:

TH

Contacts Usage:

standard contacts

Operator Profile:

orange flush

Contacts Material:

silver alloy (Ag/Ni)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Surge Withstand:

1 kV IEC 61000-4-5

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

China Rohs Regulation:

X
