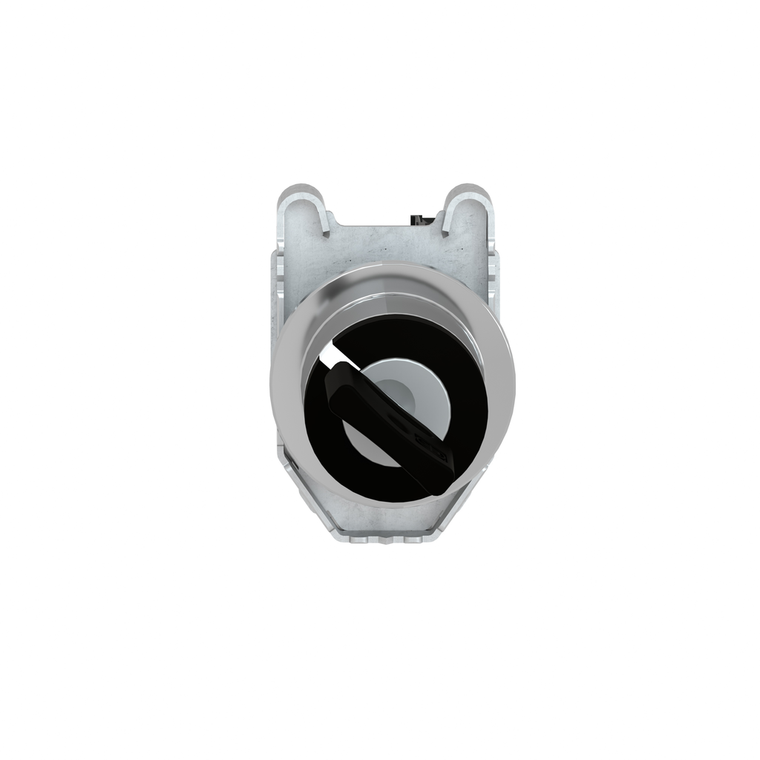

Schneider Electric XB4FG61 Flush Ksw Key455 2Pos 1No
Schneider Electric
$90.63
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This flush mounted key switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this key switch addresses the market demands for ergonomic and aesthetics. This black key switch is compatible with key number 455 and supports 2 positions 90 degree spring return to left. The contact type is 1NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this key switch is 127 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this key switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Type And Composition:
- 1 NO
- Device Mounting:
- built-in
- Fixing Collar Material:
- zamak
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Head Type:
- built-in-flush
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Depth:
- 100 mm
- Product Or Component Type:
- selector switch
- Ik Degree Of Protection:
- IK04 conforming to IEC 50102
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Contact Operation:
- slow-break
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Environmental Disclosure:
- ENVPEP1808008EN
- Operator Profile:
- black key switch
- Warranty:
- 18 months
- Key Withdrawal Position:
- left-hand
- Contacts Usage:
- standard contacts
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Overvoltage Category:
- class I IEC 60536
- Type Of Operator:
- right to left spring return
- Terminals Description Iso N°1:
- (13-14)NO
- Net Weight:
- 0.117 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB4
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Bezel Material:
- chromium plated metal
- Device Short Name:
- XB4F
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Torque Value:
- 0.14 N.m NO changing electrical state
- Contacts Material:
- silver alloy (Ag/Ni)
- Fixing Center:
- 40 x 50 mm 1...6 mm thick panel)
- Sustainable Offer Status:
- Green Premium product
- Fixing Mode:
- by screws
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Mounting Diameter:
- 30.5 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sale Per Indivisible Quantity:
- 1
- Mercury Free:
- Yes
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Mechanical Durability:
- 1000000 cycles
- Operator Position Information:
- 2 positions 90°
- Type Of Keylock:
- key 455
- Positive Opening:
- without
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Height:
- 47 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Presentation:
- complete product
- Circularity Profile:
- ENVEOLI1808008EN
- Width:
- 36.6 mm
