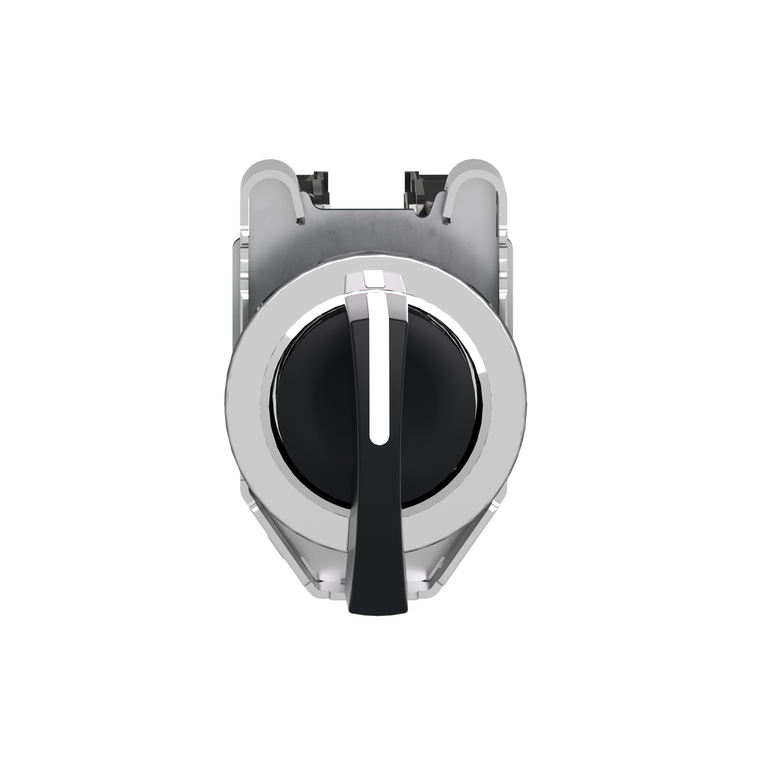

Schneider Electric XB4FJ53 Flush Ssw Long Handle 3Pos 2No

Schneider Electric XB4FJ53 Flush Ssw Long Handle 3Pos 2No

Schneider Electric
SKU:
XB4FJ53
|
UPC:
3606489580278
Availability:
Factory stock
$55.35
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This flush mounted selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a black long handle with 3 positions ± 45 degree spring return to center. The contact type is 2NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 96 grams, height is 48 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Additional Information
Rohs Exemption Information:
Yes
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Operator Profile:
black long handle
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Mercury Free:
Yes
Operator Position Information:
3 positions +/- 45°
Sale Per Indivisible Quantity:
1
Product Or Component Type:
selector switch
Width:
36.6 mm
Fixing Center:
40 x 50 mm 1...6 mm thick panel)
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Positive Opening:
without
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Standards:
CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Terminals Description Iso N°1:
(23-24)NO || (13-14)NO
Net Weight:
0.105 kg
Device Short Name:
XB4F
Device Mounting:
built-in
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2
Mounting Diameter:
30.5 mm
Contacts Material:
silver alloy (Ag/Ni)
Contacts Type And Composition:
2 NO
Range Of Product:
Harmony XB4
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Mechanical Durability:
1000000 cycles
Overvoltage Category:
class I IEC 60536
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Depth:
70 mm
Bezel Material:
chromium plated metal
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Type Of Operator:
to centre spring return
Ambient Air Temperature For Operation:
-40-70 °C
Toxic Heavy Metal Free:
Yes
Circularity Profile:
ENVEOLI1808008EN
Fixing Collar Material:
zamak
Device Presentation:
complete product
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Reach Free Of Svhc:
Yes
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ik Degree Of Protection:
IK04 conforming to IEC 50102
Protective Treatment:
TH
Shape Of Signaling Unit Head:
round
Product Certifications:
UL Listed || CSA || CCC || EAC
Contacts Usage:
standard contacts
Fixing Mode:
by screws
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Contact Operation:
slow-break
Warranty:
18 months
Height:
50 mm
Torque Value:
0.14 N.m NO changing electrical state
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Environmental Disclosure:
ENVPEP1808008EN
Head Type:
built-in-flush
