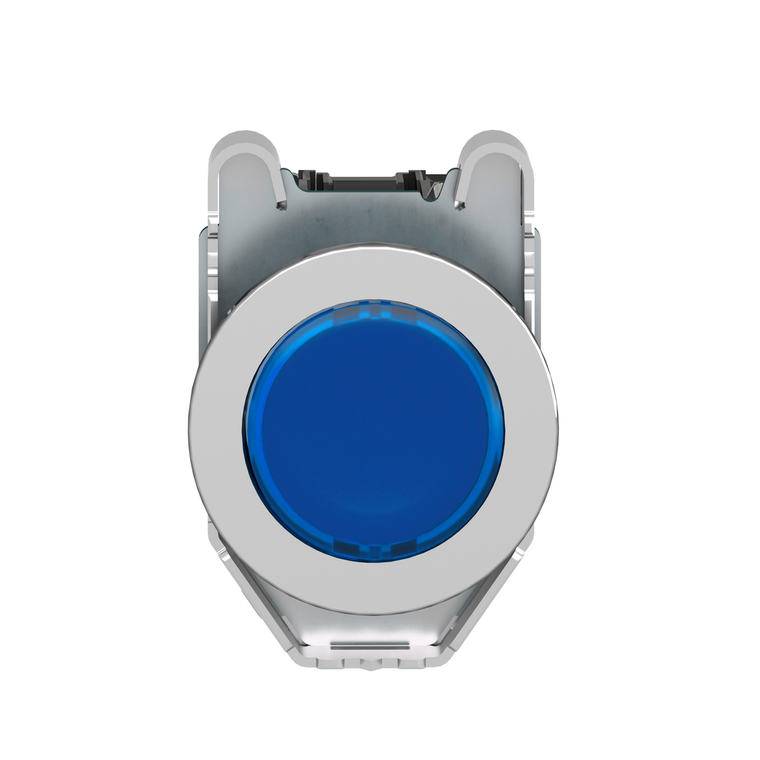

Schneider Electric XB4FW36G5 Flush Caps Ill Pb Bl Led 120V 1No 1Nc

Schneider Electric XB4FW36G5 Flush Caps Ill Pb Bl Led 120V 1No 1Nc

Schneider Electric
SKU:
XB4FW36G5
|
UPC:
3606489580766
$119.30
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This flush mounted illuminated pushbutton is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 120 V AC. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and blue. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 132 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
Additional Information
Shape Of Signaling Unit Head:
round
Supply Voltage Limits:
100-132 V AC
Width:
36.6 mm
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Sale Per Indivisible Quantity:
1
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Contact Operation:
slow-break
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Protective Treatment:
TH
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity Profile:
ENVEOLI1808008EN
Bulb Base:
integral LED
Product Or Component Type:
illuminated push-button
Mechanical Durability:
10000000 cycles
Contacts Material:
silver alloy (Ag/Ni)
Rohs Exemption Information:
Yes
Fixing Collar Material:
zamak
Device Mounting:
built-in
Electrical Shock Protection Class:
class I IEC 60536
Environmental Disclosure:
ENVPEP1808008EN
Net Weight:
0.132 kg
Surge Withstand:
1 kV IEC 61000-4-5
Head Type:
built-in-flush
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Contacts Type And Composition:
1 NO + 1 NC
Positive Opening:
with IEC 60947-5-1 appendix K
Range Of Product:
Harmony XB4
Device Presentation:
complete product
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Ambient Air Temperature For Operation:
-40-70 °C
Electromagnetic Emission:
class B IEC 55011
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operator Profile:
blue flush
Fixing Mode:
by screws 0.8 N.m
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
[Us] Rated Supply Voltage:
110...120 V AC 50/60 Hz
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Product Certifications:
UL Listed || CSA || CCC || EAC
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Signalling Type:
steady
Mounting Diameter:
30.5 mm
Depth:
55 mm
Ik Degree Of Protection:
IK06 IEC 50102
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Device Short Name:
XB4F
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Storage:
-40-70 °C
Standards:
CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Operating Force:
3.5 N NC changing electrical state || 3.8 N
Type Of Operator:
spring return
Warranty:
18 months
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Bezel Material:
chromium plated metal
Service Life:
100000 h at rated voltage and 25 °C
Height:
47 mm
Current Consumption:
14 mA
Contacts Usage:
standard contacts
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Mercury Free:
Yes
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Sustainable Offer Status:
Green Premium product
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Light Source:
universal LED
