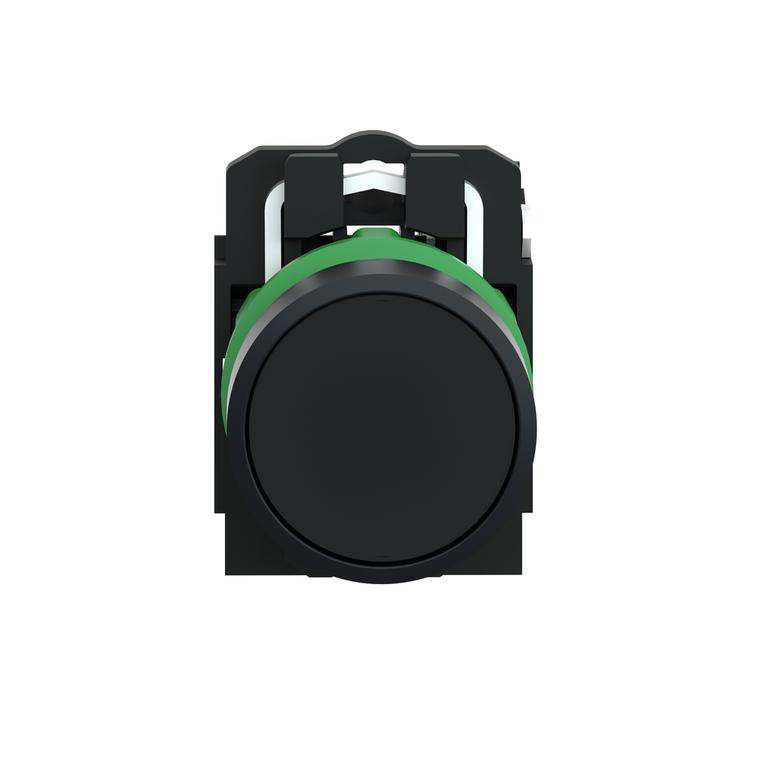

Schneider Electric XB5AA21 Pushbutton

Schneider Electric XB5AA21 Pushbutton

Schneider Electric
SKU:
XB5AA21
|
UPC:
3389110903386
$38.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony XB5, modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Shape Of Signaling Unit Head:
round
Sale Per Indivisible Quantity:
1
Environmental Disclosure:
ENVPEP1710010EN
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Contacts Material:
silver alloy (Ag/Ni)
Compatibility Code:
XB5
Toxic Heavy Metal Free:
Yes
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
Mounting Diameter:
22 mm
Rohs Exemption Information:
Yes
Net Weight:
0.037 kg
Contacts Type And Composition:
1 NO
Operating Force:
3.8 N NO changing electrical state
Reach Free Of Svhc:
Yes
China Rohs Regulation:
X
Circularity Profile:
ENVEOLI1710010EN
Width:
30 mm
Contacts Usage:
standard contacts
Fixing Collar Material:
plastic
Ambient Air Temperature For Storage:
-40-70 °C
Overvoltage Category:
class II IEC 60536
Terminals Description Iso N°1:
(13-14)NO
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Standards:
IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Contact Operation:
slow-break
Device Short Name:
XB5
Ambient Air Temperature For Operation:
-40-70 °C
Mechanical Durability:
10000000 cycles
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
Customizable:
1
Device Presentation:
complete product
Operator Profile:
black flush, unmarked
Range Of Product:
Harmony XB5
Gcr Bridge:
XB5AACUST01
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Head Type:
standard
Product Or Component Type:
push-button
Depth:
52 mm
Protective Treatment:
TH
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Customizable:
no
Height:
42 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Positive Opening:
without
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Product Certifications:
UL Listed || CSA || RINA || BV || DNV || LROS (Lloyds register of shipping) || GL
Ik Degree Of Protection:
IK03 IEC 50102
Type Of Operator:
spring return
Bezel Material:
plastic || dark grey plastic
