Schneider Electric XB5AA25 Pushbutton

Schneider Electric XB5AA25 Pushbutton

Schneider Electric
SKU:
XB5AA25
|
UPC:
3389110842173
Availability:
Factory stock
$41.16
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

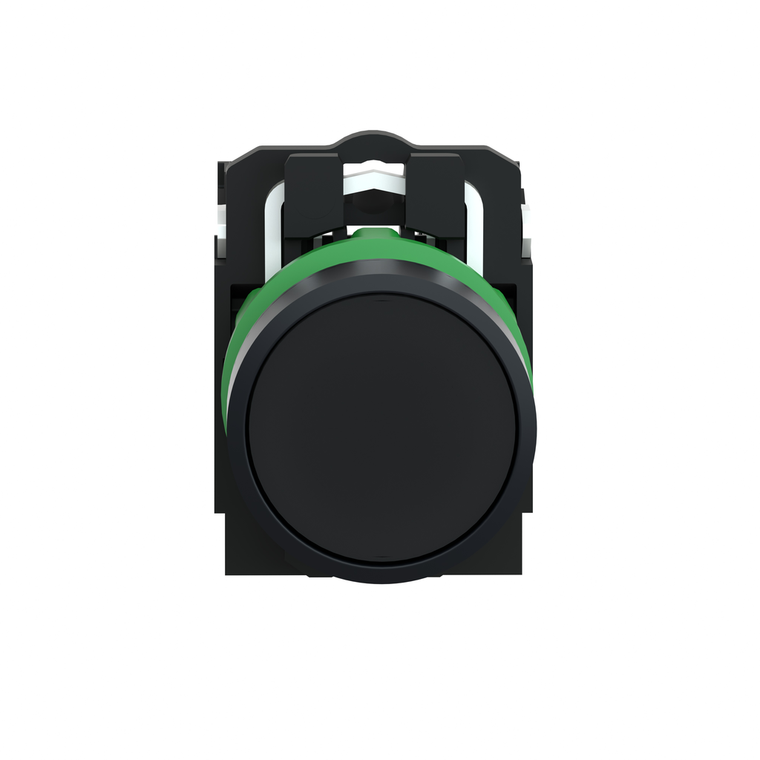

This Harmony XB5, flush modular black push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Device Presentation:
complete product
Width:
30 mm
Contact Operation:
slow-break
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Operating Force:
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Ambient Air Temperature For Storage:
-40-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatibility Code:
XB5
China Rohs Regulation:
X
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Certifications:
DNV || UL Listed || GL || BV || CSA || RINA || LROS (Lloyds register of shipping)
Mounting Diameter:
22 mm
Sustainable Offer Status:
Green Premium product
Ik Degree Of Protection:
IK03 IEC 50102
Head Type:
standard
Depth:
52 mm
Type Of Operator:
spring return
Bezel Material:
plastic || dark grey plastic
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Standards:
UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Circularity Profile:
ENVEOLI1710010EN
Rohs Exemption Information:
Yes
Warranty:
18 months
Range Of Product:
Harmony XB5
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Ambient Air Temperature For Operation:
-40-70 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Environmental Disclosure:
ENVPEP1710010EN
Contacts Usage:
standard contacts
Overvoltage Category:
class II IEC 60536
Sale Per Indivisible Quantity:
1
Product Or Component Type:
push-button
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Protective Treatment:
TH
Positive Opening:
with IEC 60947-5-1 appendix K
Fixing Collar Material:
plastic
Gcr Bridge:
XB5AACUST04
Device Short Name:
XB5
Shape Of Signaling Unit Head:
round
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Mechanical Durability:
10000000 cycles
Toxic Heavy Metal Free:
Yes
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Customizable:
1
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Height:
42 mm
Mercury Free:
Yes
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Contacts Material:
silver alloy (Ag/Ni)
Customizable:
no
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Contacts Type And Composition:
1 NO + 1 NC
Operator Profile:
black flush, unmarked
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
