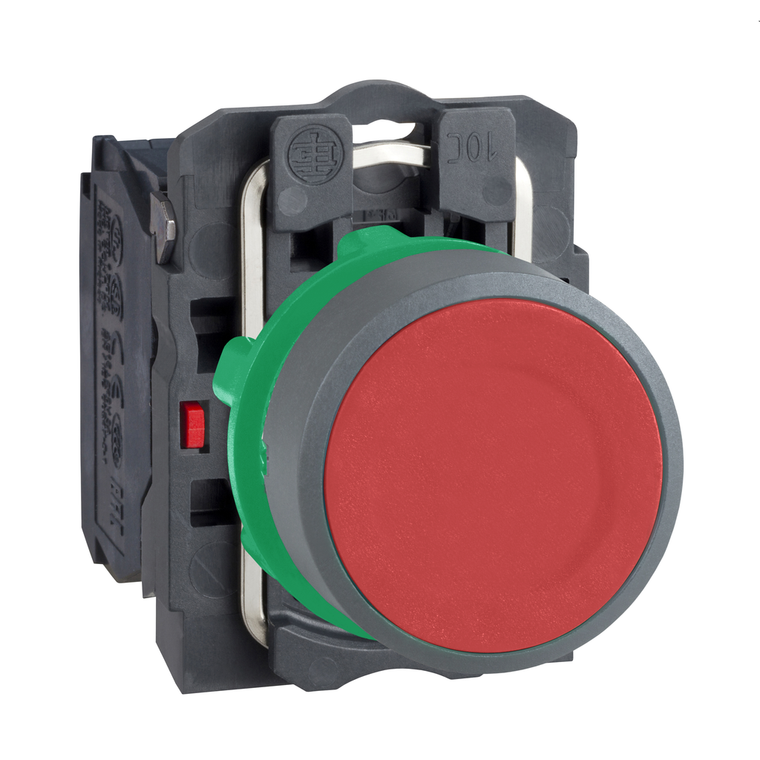

Schneider Electric XB5AA42C0 Pushbutton
Schneider Electric
$16.85
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This push-button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly visible at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.
- Sale Per Indivisible Quantity:
- 1
- Width:
- 30 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Profile:
- red flush, unmarked
- Overvoltage Category:
- class II IEC 60536
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Bezel Material:
- plastic colour plated grey
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Contact Operation:
- slow-break
- Product Or Component Type:
- push-button
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Protective Treatment:
- TH
- Ambient Air Temperature For Storage:
- -40-70 °C
- Contacts Usage:
- standard contacts
- Operating Force:
- 3.5 N NC changing electrical state
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Rohs Exemption Information:
- Yes
- Device Short Name:
- XB5
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Certifications:
- UL Listed || BV || GL || CSA || LROS (Lloyds register of shipping) || DNV || RINA
- Contacts Material:
- silver alloy (Ag/Ni)
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Customizable:
- no
- Electrical Durability:
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
- Terminals Description Iso N°1:
- (21-22)NC
- Ik Degree Of Protection:
- IK03 IEC 50102
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Toxic Heavy Metal Free:
- Yes
- Head Type:
- standard
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Net Weight:
- 0.037 kg
- Shape Of Signaling Unit Head:
- round
- Standards:
- IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C8201-1
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Reach Free Of Svhc:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Range Of Product:
- Harmony XB5
- Device Presentation:
- complete product
- Operating Travel:
- 1.5 mm NC changing electrical state) || 4.3 mm total travel)
- Depth:
- 52 mm
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Mounting Diameter:
- 22 mm
- Mechanical Durability:
- 10000000 cycles
- Height:
- 42 mm
- Customizable:
- 1
- Fixing Collar Material:
- plastic
- China Rohs Regulation:
- X
- Contacts Type And Composition:
- 1 NC
- Type Of Operator:
- spring return
- Gcr Bridge:
- XB5AACUST02
- Mercury Free:
- Yes
- Compatibility Code:
- XB5
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
