Schneider Electric XB5AA45 Pushbutton

Schneider Electric XB5AA45 Pushbutton

Schneider Electric
SKU:
XB5AA45
|
UPC:
3389110842036
$56.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

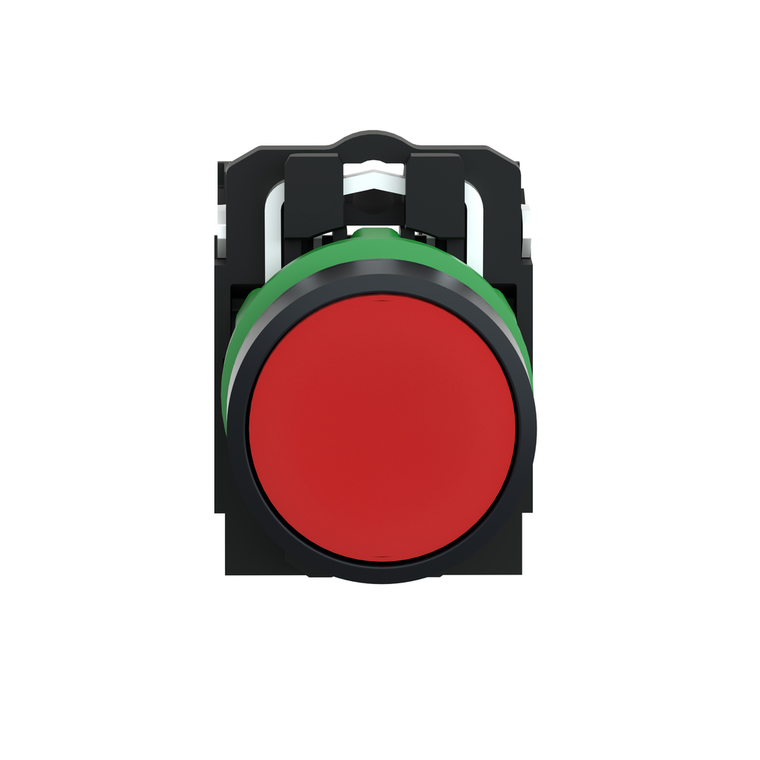

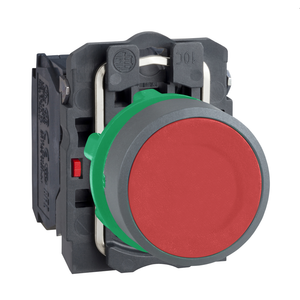

This Harmony XB5, flush modular red push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Customizable:
no
Protective Treatment:
TH
Operating Force:
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Ambient Air Temperature For Operation:
-40-70 °C
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Range Of Product:
Harmony XB5
Overvoltage Category:
class II IEC 60536
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Head Type:
standard
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Device Short Name:
XB5
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-40-70 °C
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Reach Free Of Svhc:
Yes
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Circularity Profile:
ENVEOLI1710010EN
Compatibility Code:
XB5
Sale Per Indivisible Quantity:
1
Mercury Free:
Yes
Positive Opening:
with IEC 60947-5-1 appendix K
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Contact Operation:
slow-break
Fixing Collar Material:
plastic
Product Or Component Type:
push-button
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
Contacts Material:
silver alloy (Ag/Ni)
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Environmental Disclosure:
ENVPEP1710010EN
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Standards:
IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || JIS C8201-1
Mechanical Durability:
10000000 cycles
Product Certifications:
GL || DNV || RINA || LROS (Lloyds register of shipping) || BV || CSA || UL Listed
Mounting Diameter:
22 mm
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contacts Usage:
standard contacts
Contacts Type And Composition:
1 NO + 1 NC
Ik Degree Of Protection:
IK03 IEC 50102
Height:
42 mm
Shape Of Signaling Unit Head:
round
Device Presentation:
complete product
Customizable:
1
Operator Profile:
red flush, unmarked
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Warranty:
18 months
Bezel Material:
plastic || dark grey plastic
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Toxic Heavy Metal Free:
Yes
Sustainable Offer Status:
Green Premium product
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Rohs Exemption Information:
Yes
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
China Rohs Regulation:
X
Depth:
52 mm
Width:
30 mm
Type Of Operator:
spring return
Gcr Bridge:
XB5AACUST04
