Schneider Electric XB5AA51 Pushbutton

Schneider Electric XB5AA51 Pushbutton

Schneider Electric
SKU:
XB5AA51
|
UPC:
3389110134384
$38.50
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

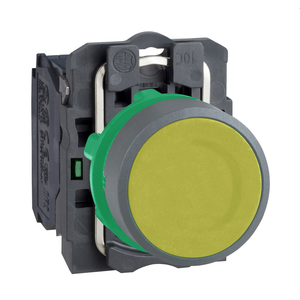

This Harmony XB5, modular yellow push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Mechanical Durability:
10000000 cycles
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Overvoltage Category:
class II IEC 60536
Height:
42 mm
Mercury Free:
Yes
Standards:
IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || UL 508 || JIS C8201-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Device Short Name:
XB5
Terminals Description Iso N°1:
(13-14)NO
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Operation:
-40-70 °C
Reach Free Of Svhc:
Yes
Toxic Heavy Metal Free:
Yes
Customizable:
no
Operating Force:
3.8 N NO changing electrical state
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Device Presentation:
complete product
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
China Rohs Regulation:
X
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Fixing Collar Material:
plastic
Head Type:
standard
Range Of Product:
Harmony XB5
Shape Of Signaling Unit Head:
round
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type:
push-button
Bezel Material:
plastic || dark grey plastic
Net Weight:
0.037 kg
Sale Per Indivisible Quantity:
1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Mounting Diameter:
22 mm
Ik Degree Of Protection:
IK03 IEC 50102
Protective Treatment:
TH
Environmental Disclosure:
ENVPEP1710010EN
Contacts Usage:
standard contacts
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
Customizable:
1
Operator Profile:
yellow flush, unmarked
Positive Opening:
without
Warranty:
18 months
Gcr Bridge:
XB5AACUST01
Contacts Material:
silver alloy (Ag/Ni)
Contact Operation:
slow-break
Compatibility Code:
XB5
Depth:
52 mm
Circularity Profile:
ENVEOLI1710010EN
Ambient Air Temperature For Storage:
-40-70 °C
Type Of Operator:
spring return
Width:
30 mm
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Type And Composition:
1 NO
Product Certifications:
UL Listed || BV || CSA || RINA || LROS (Lloyds register of shipping) || DNV || GL
