Schneider Electric XB5AA711237 Complete Plastic Double Headed Pushbutto
Schneider Electric
$83.79
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

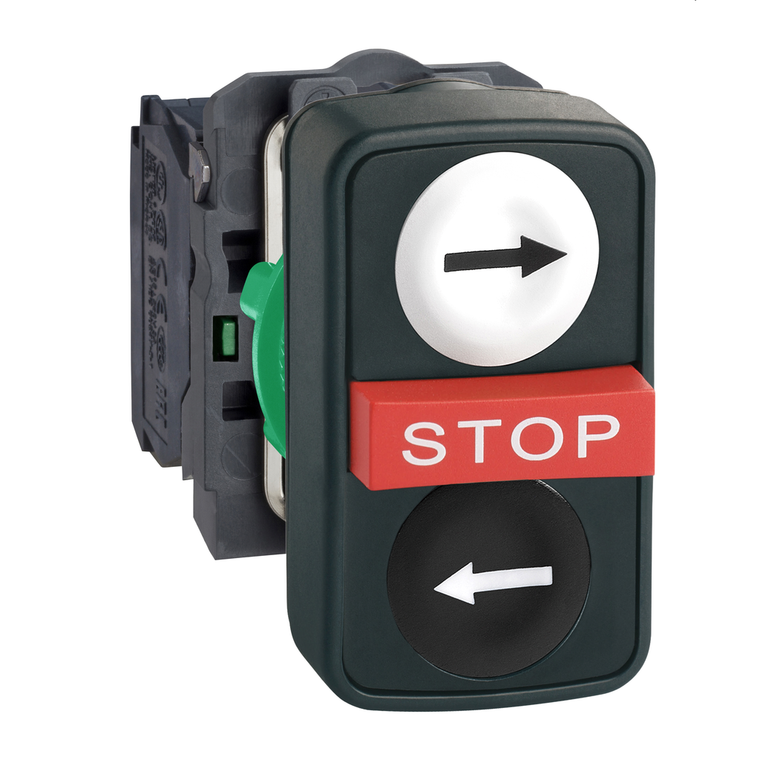

This Harmony XB5, triple-headed modular push button has 1 white, 1 red, and 1 black buttons, operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is marked with "left arrow" and "right arrow" symbols. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
- Standards:
- IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electrical Shock Protection Class:
- class II IEC 61140
- Product Or Component Type:
- triple-headed push-button
- Contacts Usage:
- standard contacts
- Colour Of Marking:
- black marking when white caps || white marking when green, red or black caps
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- China Rohs Regulation:
- X
- Device Presentation:
- complete product
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Ambient Air Temperature For Operation:
- -25-70 °C
- Connections - Terminals:
- screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Head Type:
- standard
- Ik Degree Of Protection:
- IK03 IEC 50102
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Contacts Material:
- silver alloy (Ag/Ni)
- Mechanical Durability:
- 1000000 cycles
- Rohs Exemption Information:
- Yes
- Bezel Material:
- dark grey plastic
- Circularity Profile:
- ENVEOLI1710010EN
- Shape Of Screw Head:
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operators Description:
- white ''right arrow'' - black ''left arrow'' - red ''STOP''
- Device Short Name:
- XB5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Contact Operation:
- slow-break
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Net Weight:
- 0.063 kg
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Type Of Operator:
- spring return
- Mounting Diameter:
- 22 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || UL Listed || GL || BV || CSA
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Operating Force:
- 3.5 N NC changing electrical state || 3.8 N NO changing electrical state
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Operator Profile:
- 2 flush - 1 central projecting STOP push-buttons
- Ambient Air Temperature For Storage:
- -40-70 °C
- Contacts Type And Composition:
- 2 NO + 1 NC
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Profile:
- red projecting, STOP white) || white flush, right arrow black) || black flush, left arrow white)
- Range Of Product:
- Harmony XB5
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Mercury Free:
- Yes
- Shape Of Signaling Unit Head:
- rectangular
- Sustainable Offer Status:
- Green Premium product
- Fixing Collar Material:
- plastic
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
