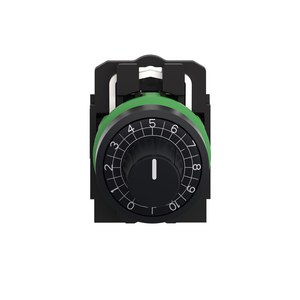

Schneider Electric XB5AD912R100K Head And Potentiometer R100K
Schneider Electric
$57.95
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, 22mm diameter potentiometer has a resistance of 100kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
- Rated Power In W:
- 1 W 70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Protective Treatment:
- TH
- Product Compatibility:
- Ã 6 mm shaft
- Precision Of Internal Conversion Resistor:
- -0.1
- Sale Per Indivisible Quantity:
- 1
- Product Certifications:
- CSA || BV || UL Listed
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ohmic Value:
- 100000 Ohm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Electrical Shock Protection Class:
- class II IEC 60536
- Standards:
- IEC 60947-1 || UL 508 || CSA C22.2 No 14
- Reach Free Of Svhc:
- Yes
- Main Group:
- potentiometer
- Product Or Component Type:
- potentiometer
- Mercury Free:
- Yes
- Cad Overall Height:
- 42 mm
- Colour Of Marking:
- white
- Cad Overall Width:
- 30 mm
- Group Of Product:
- potentiometer knurled knob
- Circularity Profile:
- ENVEOLI1710010EN
- Material:
- cermet
- Net Weight:
- 0.048 kg
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Bezel Material:
- dark grey plastic
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Short Name:
- XB5
- Mounting Diameter:
- 22 mm
- [Us] Rated Supply Voltage:
- <= 30 V AC || <= 42 V DC
- Device Presentation:
- complete product
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Depth:
- 82 mm
- Potentiometer Characteristic:
- linear
- Environmental Disclosure:
- ENVPEP1710010EN
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP66 IEC 60529
- Range Of Product:
- Harmony XB5
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Mechanical Durability:
- 50000 cycles
- Ik Degree Of Protection:
- IK03 IEC 50102
- Operator Profile:
- knurled knob, with white)
- Head Type:
- standard
- Ambient Air Temperature For Operation:
- -40-70 °C
- Datasheet:
- View
