Schneider Electric XB5AL73415 Complete Plastic Double Headed Pushbutto

Schneider Electric XB5AL73415 Complete Plastic Double Headed Pushbutto

Schneider Electric
SKU:
XB5AL73415
|
UPC:
3389119043519
$80.75
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

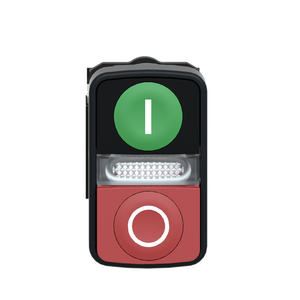

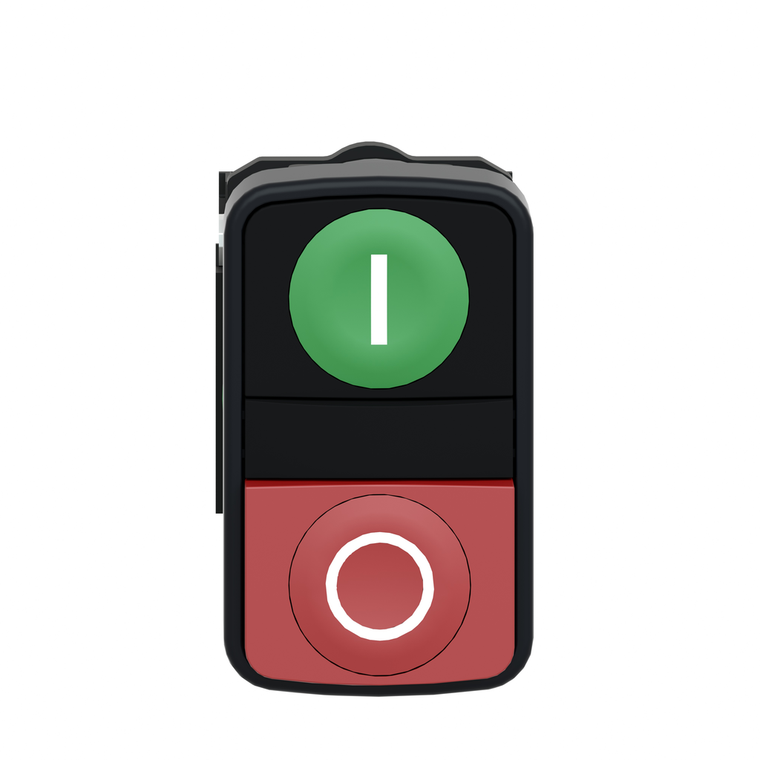

This Harmony XB5, double-headed modular push button has 1 red and 1 green button, operates with a spring return mechanism and uses screw clamp terminals. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Contacts Type And Composition:
1 NO + 1 NC
Standards:
IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-1
Environmental Disclosure:
ENVPEP1710010EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications:
CSA || GL || UL Listed || LROS (Lloyds register of shipping) || DNV || BV
Operating Force:
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Operator Profile:
green flush, I white) || red projecting, O white)
Mounting Diameter:
22 mm
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage:
-40-70 °C
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Contacts Material:
silver alloy (Ag/Ni)
Net Weight:
0.053 kg
Shape Of Signaling Unit Head:
rectangular
China Rohs Regulation:
X
Overvoltage Category:
class II IEC 60536
Ik Degree Of Protection:
IK03 IEC 50102
Range Of Product:
Harmony XB5
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Device Short Name:
XB5
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI1710010EN
Warranty:
18 months
Operator Profile:
1 flush - 1 projecting push-buttons
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Protective Treatment:
TH
Ip Degree Of Protection:
IP67 IEC 60529 || IP69 || IP69K
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Type Of Operator:
spring return
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Contact Operation:
slow-break
Contacts Usage:
standard contacts
Operators Description:
green ''I'' - red ''O''
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Width:
30 mm
Mechanical Durability:
1000000 cycles
Head Type:
standard
Device Presentation:
complete product
Product Or Component Type:
double-headed push-button
Height:
50 mm
Ambient Air Temperature For Operation:
-40-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without c
Fixing Collar Material:
plastic
Colour Of Marking:
white marking when green, red or black caps || black marking when white caps
Positive Opening:
with IEC 60947-5-1 appendix K
Depth:
59 mm
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Bezel Material:
dark grey plastic
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
