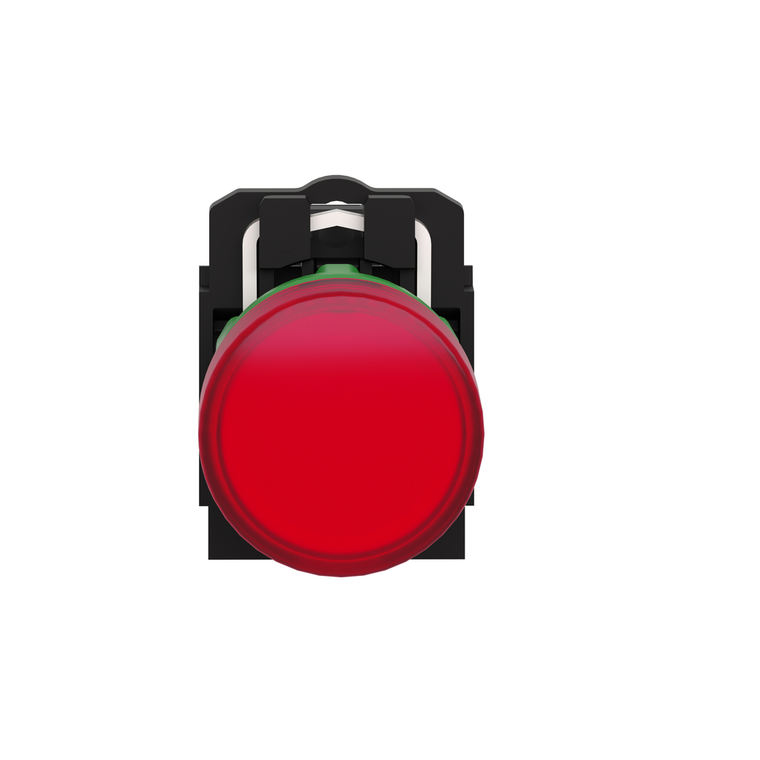

Schneider Electric XB5AVB4 Pilot Light, Complete, 24V, Red

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AVB4 Pilot Light, Complete, 24V, Red

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AVB4

UPC:

3389110903782

MPN:

Condition:

New

Current Consumption:

18 mA

Height:

42 mm

Surge Withstand:

1 kV IEC 61000-4-5

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Of Product:

Harmony XB5

Sustainable Offer Status:

Green Premium product

Net Weight:

0.038 kg

Signalling Type:

steady

Ambient Air Temperature For Operation:

-40-70 °C

Sale Per Indivisible Quantity:

1

Compatibility Code:

XB5

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Fixing Collar Material:

plastic

Mercury Free:

Yes

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Bulb Base:

integral LED

Device Presentation:

complete product

Environmental Disclosure:

ENVPEP1710010EN

Shape Of Signaling Unit Head:

round

Rohs Exemption Information:

Yes

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Circularity Profile:

ENVEOLI1710010EN

Ik Degree Of Protection:

IK05 IEC 50102

Bezel Material:

dark grey plastic

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Head Type:

standard

Standards:

UL 508 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Light Source:

universal LED

China Rohs Regulation:

X

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Depth:

54 mm

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Service Life:

100000 h at rated voltage and 25 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Light Source Colour:

red

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Cap/Operator Or Lens Colour:

red

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Product Certifications:

CSA || UL Listed

Terminals Description Iso N°1:

(X1-X2)PL

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Overvoltage Category:

class II IEC 60536

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Gcr Bridge:

XB5AVCUST03

Device Short Name:

XB5

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Width:

30 mm

Protective Treatment:

TH

Warranty:

18 months

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Mounting Diameter:

22 mm

Operator Additional Information:

with plain lens

Product Or Component Type:

pilot light

Electromagnetic Emission:

class B IEC 55011

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Ambient Air Temperature For Storage:

-40-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
