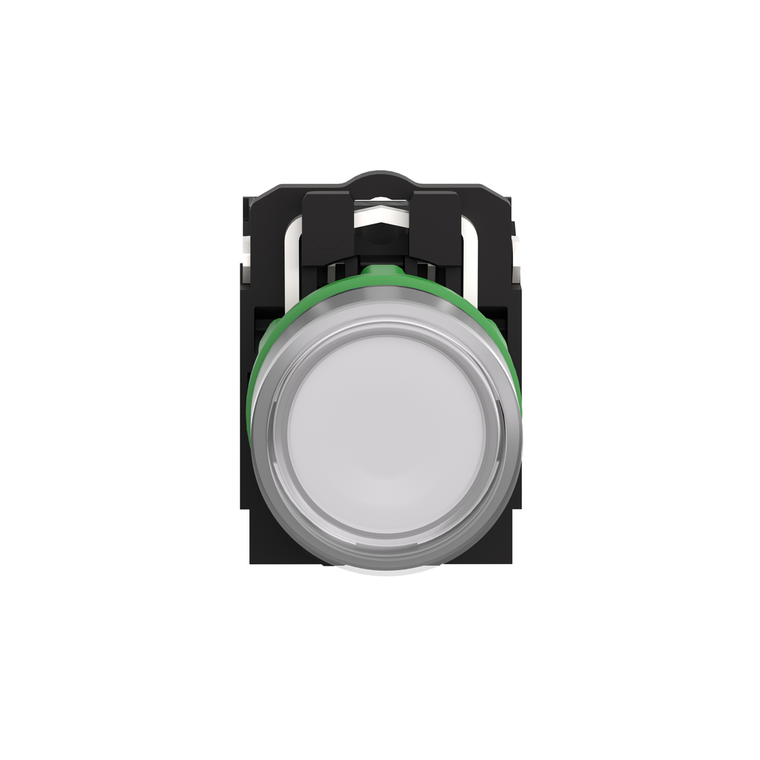

Schneider Electric XB5AW31M5C0 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AW31M5C0 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW31M5C0

UPC:

3606489759834

MPN:

Condition:

New

Contact Operation:

slow-break

Contacts Usage:

standard contacts

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Fixing Collar Material:

plastic

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Contacts Material:

silver alloy (Ag/Ni)

Contacts Type And Composition:

1 NO + 1 NC

Product Or Component Type:

illuminated push-button

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Device Short Name:

XB5

Ik Degree Of Protection:

IK05 IEC 50102

Sale Per Indivisible Quantity:

1

Surge Withstand:

1 kV IEC 61000-4-5

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Bezel Material:

plastic colour plated grey

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Current Consumption:

14 mA

Bulb Base:

integral LED

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Electromagnetic Emission:

class B IEC 55011

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Height:

42 mm

Range Of Product:

Harmony XB5

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Shape Of Signaling Unit Head:

round

Cap/Operator Or Lens Colour:

white

Overvoltage Category:

class II IEC 60536

Light Source:

universal LED

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

[Us] Rated Supply Voltage:

220...240 V AC 50/60 Hz

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Mechanical Durability:

10000000 cycles

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Standards:

IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || UL 508 || JIS C8201-1

China Rohs Regulation:

X

Mounting Diameter:

22 mm

Ambient Air Temperature For Storage:

-40-70 °C

Operator Profile:

white flush, unmarked

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Signalling Type:

steady

Depth:

57 mm

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Ambient Air Temperature For Operation:

-40-70 °C

Protective Treatment:

TH

Rohs Exemption Information:

Yes

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Product Certifications:

GL || UL Listed || LROS (Lloyds register of shipping) || BV || DNV || CSA

Service Life:

100000 h at rated voltage and 25 °C

Supply Voltage Limits:

195-264 V AC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Operator Additional Information:

with plain lens

Width:

30 mm

Head Type:

standard

Mercury Free:

Yes

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Type Of Operator:

spring return

Device Presentation:

complete product

Net Weight:

0.056 kg

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Positive Opening:

with IEC 60947-5-1 appendix K
