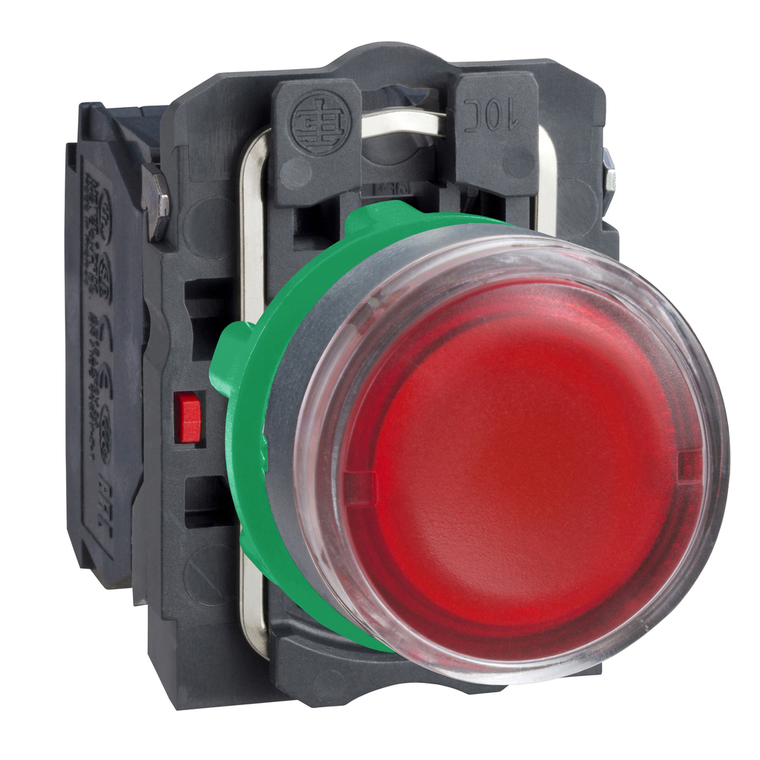

Schneider Electric XB5AW3445 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5AW3445 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW3445

UPC:

3389110904161

MPN:

Condition:

New

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Overvoltage Category:

class II IEC 60536

Width:

30 mm

Bezel Material:

dark grey plastic

Ip Degree Of Protection:

IP66 IEC 60529 || IP69 || IP69K || IP67

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Height:

42 mm

Sustainable Offer Status:

Green Premium product

Depth:

101 mm

Circularity Profile:

ENVEOLI1710010EN

Bulb Base:

BA 9s

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Operator Profile:

red flush, unmarked

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

China Rohs Regulation:

X

Ik Degree Of Protection:

IK05 IEC 50102

Ambient Air Temperature For Storage:

-40-70 °C

Sale Per Indivisible Quantity:

1

Device Short Name:

XB5

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Contact Operation:

slow-break

Net Weight:

0.129 kg

Shape Of Signaling Unit Head:

round

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cap/Operator Or Lens Colour:

red

Ambient Air Temperature For Operation:

-40-55 °C

Fixing Collar Material:

plastic

[Us] Rated Supply Voltage:

220...240 V AC 50/60 Hz

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Contacts Material:

silver alloy (Ag/Ni)

Contacts Usage:

standard contacts

Device Presentation:

complete product

Environmental Disclosure:

ENVPEP1710010EN

Product Or Component Type:

illuminated push-button

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Light Source:

incandescent

Standards:

IEC 60947-1 || UL 508 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1

Range Of Product:

Harmony XB5

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Light Block Supply:

via integral transformer 1.2 VA 6 V

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Mechanical Durability:

10000000 cycles

Mounting Diameter:

22 mm

Product Certifications:

LROS (Lloyds register of shipping) || DNV || UL Listed || GL || CSA || BV

Rohs Exemption Information:

Yes

Signalling Type:

steady

Warranty:

18 months

Positive Opening:

with IEC 60947-5-1 appendix K

Protective Treatment:

TH

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Contacts Type And Composition:

1 NO + 1 NC

Type Of Operator:

spring return

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Operator Additional Information:

with plain lens

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mercury Free:

Yes

Head Type:

standard

Catalog:

View

Datasheet:

View
