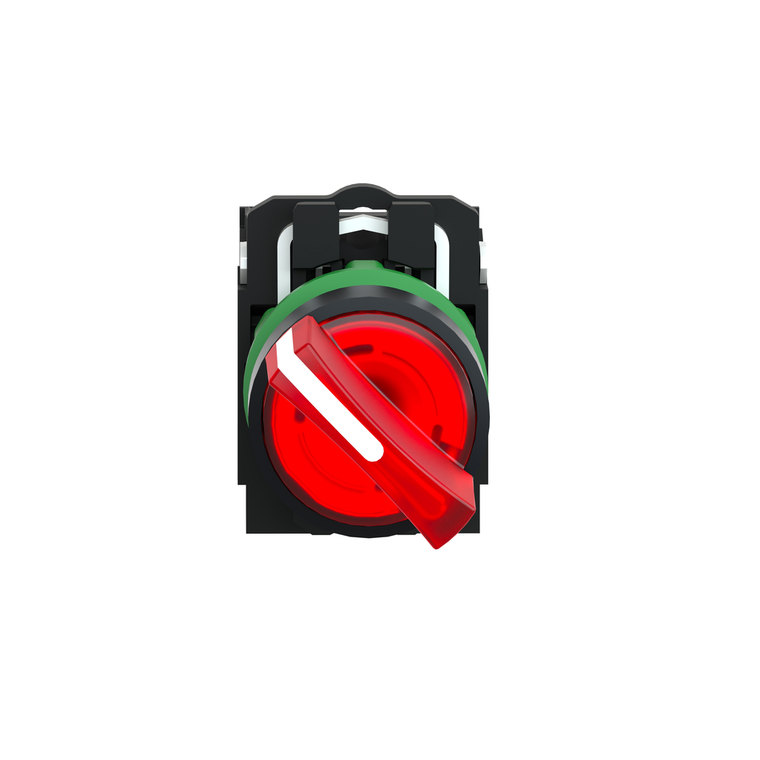

Schneider Electric XB5AW34G5C0 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5AW34G5C0 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW34G5C0

UPC:

3606489760038

MPN:

Condition:

New

Operator Profile:

red flush, unmarked

Bulb Base:

integral LED

Operator Additional Information:

with plain lens

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electromagnetic Emission:

class B IEC 55011

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Mechanical Durability:

10000000 cycles

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-40-70 °C

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Current Consumption:

14 mA

Mercury Free:

Yes

Sale Per Indivisible Quantity:

1

Protective Treatment:

TH

Width:

30 mm

Service Life:

100000 h at rated voltage and 25 °C

Rohs Exemption Information:

Yes

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bezel Material:

plastic colour plated grey

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Contacts Usage:

standard contacts

Signalling Type:

steady

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Positive Opening:

with IEC 60947-5-1 appendix K

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Shape Of Signaling Unit Head:

round

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Cap/Operator Or Lens Colour:

red

Contacts Material:

silver alloy (Ag/Ni)

Ambient Air Temperature For Operation:

-40-70 °C

Ik Degree Of Protection:

IK05 IEC 50102

Type Of Operator:

spring return

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Depth:

57 mm

Net Weight:

0.056 kg

Product Certifications:

BV || CSA || UL Listed || LROS (Lloyds register of shipping) || GL || DNV

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

China Rohs Regulation:

X

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Standards:

UL 508 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1

Device Presentation:

complete product

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Overvoltage Category:

class II IEC 60536

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Contacts Type And Composition:

1 NO + 1 NC

Range Of Product:

Harmony XB5

Terminals Description Iso N°1:

(13-14)NO || (21-22)NC

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Surge Withstand:

1 kV IEC 61000-4-5

Light Source:

universal LED

Mounting Diameter:

22 mm

Contact Operation:

slow-break

Head Type:

standard

Height:

42 mm

Fixing Collar Material:

plastic

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Product Or Component Type:

illuminated push-button

Device Short Name:

XB5

Supply Voltage Limits:

100-132 V AC

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Datasheet:

View
