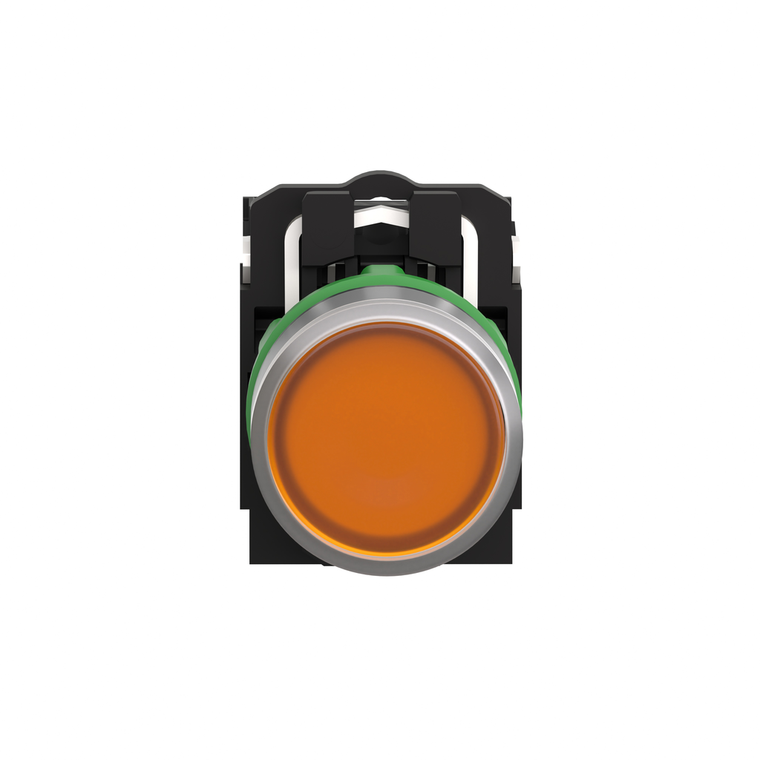

Schneider Electric XB5AW35G5C0 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW35G5C0

UPC:

3606489760151

MPN:

Condition:

New

Fixing Collar Material:

plastic

China Rohs Regulation:

X

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Ambient Air Temperature For Storage:

-40-70 °C

Mounting Diameter:

22 mm

Service Life:

100000 h at rated voltage and 25 °C

Standards:

UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Light Source:

universal LED

Shape Of Signaling Unit Head:

round

Depth:

57 mm

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Product Or Component Type:

illuminated push-button

Width:

30 mm

Ik Degree Of Protection:

IK05 IEC 50102

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Mercury Free:

Yes

Cap/Operator Or Lens Colour:

orange

Bulb Base:

integral LED

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Contacts Type And Composition:

1 NO + 1 NC

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Surge Withstand:

1 kV IEC 61000-4-5

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Presentation:

complete product

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Ambient Air Temperature For Operation:

-40-70 °C

Operator Profile:

orange flush, unmarked

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Protective Treatment:

TH

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Product Certifications:

UL Listed || GL || BV || DNV || LROS (Lloyds register of shipping) || CSA

Contacts Usage:

standard contacts

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operator Additional Information:

with plain lens

Type Of Operator:

spring return

Electromagnetic Emission:

class B IEC 55011

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Mechanical Durability:

10000000 cycles

Positive Opening:

with IEC 60947-5-1 appendix K

Supply Voltage Limits:

100-132 V AC

Contact Operation:

slow-break

Net Weight:

0.056 kg

Device Short Name:

XB5

Bezel Material:

plastic colour plated grey

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Head Type:

standard

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Overvoltage Category:

class II IEC 60536

Signalling Type:

steady

Rohs Exemption Information:

Yes

Current Consumption:

14 mA

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Sale Per Indivisible Quantity:

1

Height:

42 mm

Contacts Material:

silver alloy (Ag/Ni)

Range Of Product:

Harmony XB5

Datasheet:

View
