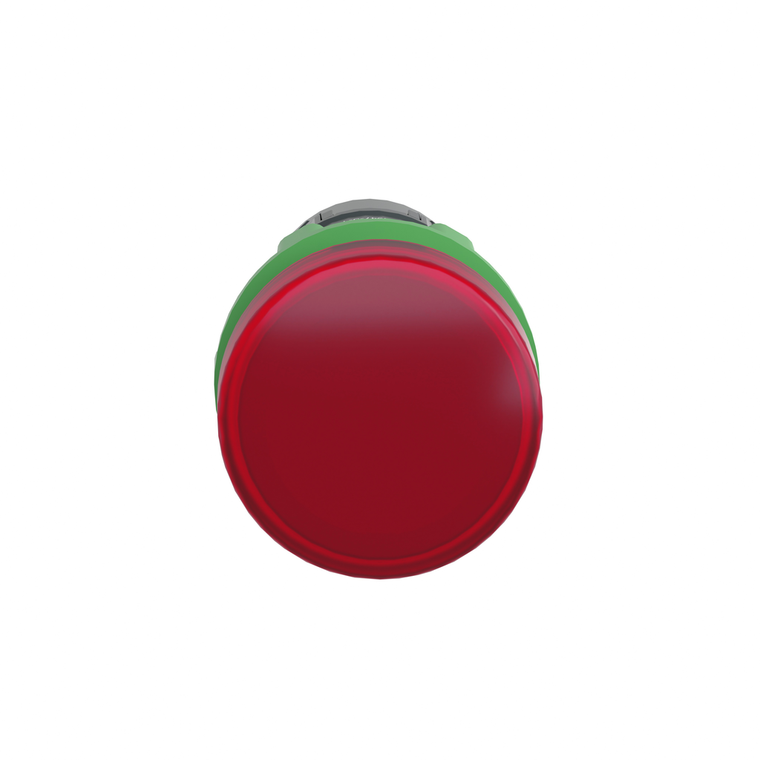

Schneider Electric XB5EVG4 Monolithic Led Pilot Light, Red, 110V

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5EVG4 Monolithic Led Pilot Light, Red, 110V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5EVG4

UPC:

3389119041492

MPN:

Condition:

New

Circularity Profile:

ENVEOLI1710010EN

Environmental Disclosure:

ENVPEP1710010EN

Overvoltage Category:

class II IEC 60536

Supply Voltage Limits:

100-132 V AC

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Light Source Colour:

red

Bezel Material:

dark grey plastic

Product Or Component Type:

pilot light

Standards:

UL 508 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electromagnetic Emission:

class B IEC 55011

Product Certifications:

CSA || UL Listed

Depth:

54 mm

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Rohs Exemption Information:

Yes

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Service Life:

100000 h at rated voltage and 25 °C

Net Weight:

0.038 kg

Signalling Type:

steady

Shape Of Signaling Unit Head:

round

Terminals Description Iso N°1:

(X1-X2)PL

Range Of Product:

Harmony XB5

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Sale Per Indivisible Quantity:

1

Head Type:

standard

Fixing Collar Material:

plastic

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Height:

29 mm

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Bulb Base:

integral LED

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Ambient Air Temperature For Operation:

-25-70 °C

Device Short Name:

XB5

Operator Additional Information:

with plain lens

Compatibility Code:

XB5

Current Consumption:

14 mA

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature For Storage:

-40-70 °C

China Rohs Regulation:

X

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Mounting Diameter:

22 mm

Width:

29 mm

Cap/Operator Or Lens Colour:

red

Light Source:

universal LED

Surge Withstand:

1 kV IEC 61000-4-5

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Protective Treatment:

TH

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Device Presentation:

monolithic product

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Ik Degree Of Protection:

IK05 IEC 50102
