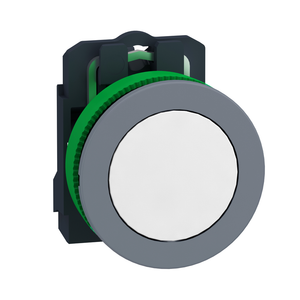

Schneider Electric XB5FA11 Flush Pb White 1No Spring Return

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FA11 Flush Pb White 1No Spring Return

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FA11

UPC:

3606481360441

MPN:

Condition:

New

Terminals Description Iso N°1:

(21-22)NC

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Reach Free Of Svhc:

Yes

Depth:

55 mm

Environmental Disclosure:

ENVPEP1710010EN

Sale Per Indivisible Quantity:

1

Positive Opening:

without

Electrical Durability:

1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Device Short Name:

XB5F

Head Type:

built-in-flush

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Product Or Component Type:

push-button

Contact Operation:

slow-break

Bezel Material:

plastic || dark grey plastic

Product Compatibility:

ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007

Protective Treatment:

TH

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Contacts Type And Composition:

1 NO

Product Certifications:

UL Listed || CSA

Mounting Diameter:

30.5 mm

Toxic Heavy Metal Free:

Yes

Compatibility Code:

XB5

Width:

36.6 mm

Operating Force:

3.5 N NC changing electrical state

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Height:

42 mm

Shape Of Signaling Unit Head:

round

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Fixing Collar Material:

plastic

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Overvoltage Category:

class II IEC 60536

Contacts Material:

silver alloy (Ag/Ni)

Ambient Air Temperature For Storage:

-40-70 °C

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Operation:

-40-70 °C

Customizable:

no

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ik Degree Of Protection:

IK03 IEC 50102

Customizable:

1

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 22196:2011 || ISO 21702

Gcr Bridge:

XB5FACUST01

Type Of Operator:

spring return

China Rohs Regulation:

X

Mechanical Durability:

10000000 cycles

Device Presentation:

complete product

Operating Travel:

2.6 mm NC changing electrical state)

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Operator Profile:

white flush, unmarked

Range Of Product:

Harmony XB5

Circularity Profile:

ENVEOLI1710010EN

Mercury Free:

Yes

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1

Shape Of Screw Head:

cross Philips no 1

Contacts Usage:

standard contacts
