Schneider Electric XB5FA42C0 Flush Red Flush Cap Pb 1Nc Screw Clamp
Schneider Electric
$18.06
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

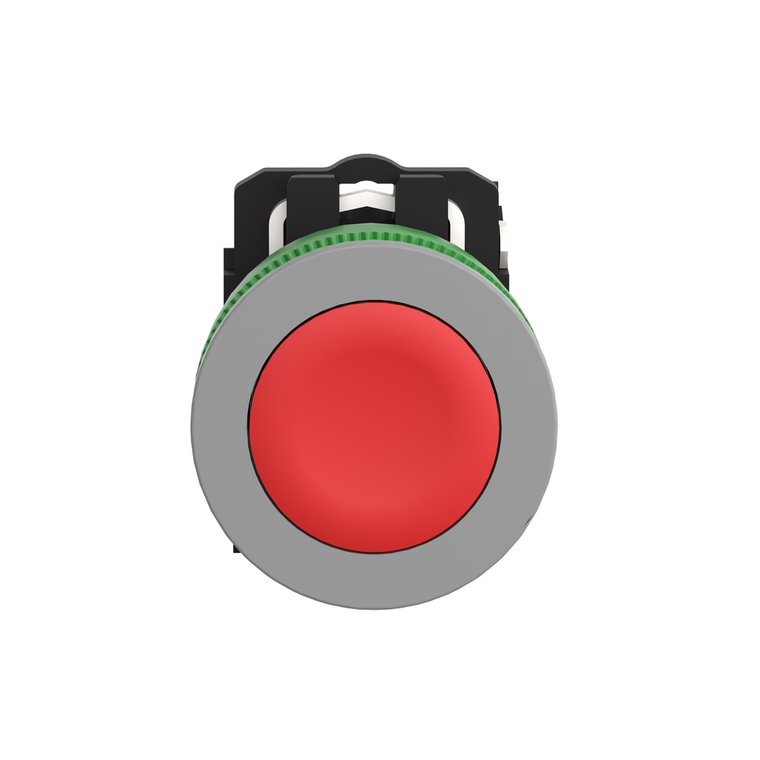

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and red. The bezel is plastic color plated grey and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Reach Free Of Svhc:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Customizable:
- 1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Customizable:
- no
- Protective Treatment:
- TH
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Mounting Diameter:
- 30.5 mm
- Contacts Type And Composition:
- 1 NC
- Gcr Bridge:
- XB5FACUST02
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Range Of Product:
- Harmony XB5
- Head Type:
- built-in-flush
- Height:
- 42 mm
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Device Short Name:
- XB5F
- Contact Operation:
- slow-break
- Fixing Collar Material:
- plastic
- China Rohs Regulation:
- X
- Sale Per Indivisible Quantity:
- 1
- Electrical Durability:
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Contacts Usage:
- standard contacts
- Bezel Material:
- plastic colour plated grey
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Depth:
- 55 mm
- Width:
- 36.6 mm
- Operator Profile:
- red flush, unmarked
- Standards:
- IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Mercury Free:
- Yes
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operating Travel:
- 1.5 mm NC changing electrical state) || 4.3 mm total travel)
- Compatibility Code:
- XB5
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Toxic Heavy Metal Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Mechanical Durability:
- 10000000 cycles
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Compatibility:
- ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007
- Operating Force:
- 3.5 N NC changing electrical state
- Product Or Component Type:
- push-button
- Product Certifications:
- UL Listed || CSA
- Type Of Operator:
- spring return
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK03 IEC 50102
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Terminals Description Iso N°1:
- (21-22)NC
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Device Presentation:
- complete product
- Contacts Material:
- silver alloy (Ag/Ni)
