Schneider Electric

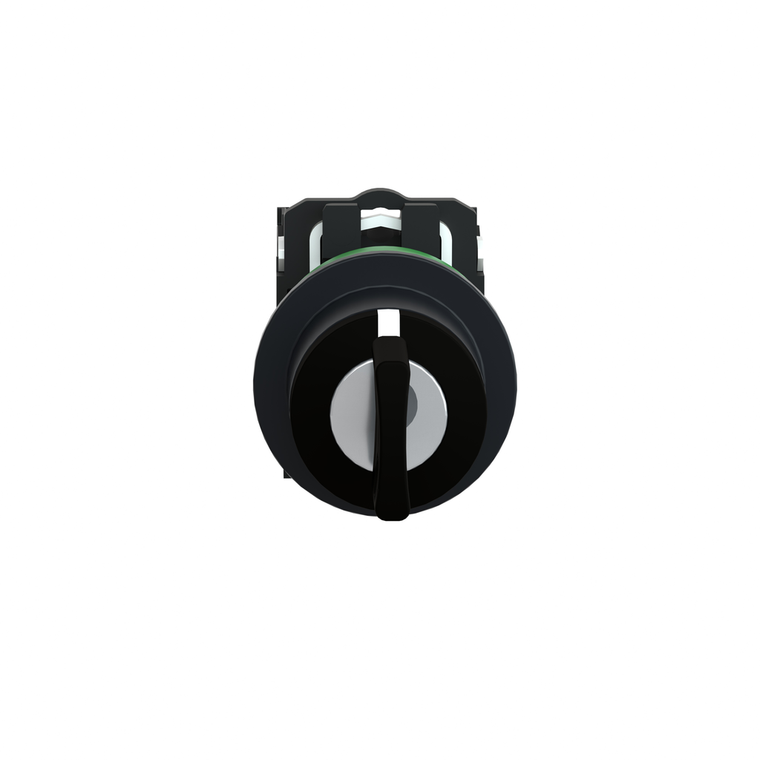

Schneider Electric XB5FG33 Flush Ss Key 3Pos Stay Put Key Rel C 2No

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5FG33 Flush Ss Key 3Pos Stay Put Key Rel C 2No

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FG33

UPC:

3606481360618

MPN:

Condition:

New

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Storage:

-40-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Height:

42 mm

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Range Of Product:

Harmony XB5

Environmental Disclosure:

ENVPEP1710010EN

Mechanical Durability:

1000000 cycles

Ik Degree Of Protection:

IK03 IEC 50102

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Key Withdrawal Position:

center

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Electrical Shock Protection Class:

class II IEC 60536

Product Or Component Type:

selector switch

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contacts Type And Composition:

2 NO

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Width:

36.6 mm

Protective Treatment:

TH

China Rohs Regulation:

X

Type Of Operator:

stay put

Bezel Material:

dark grey plastic

Device Short Name:

XB5F

Head Type:

built-in-flush

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-40-70 °C

Type Of Keylock:

key 455

Operator Position Information:

3 positions +/- 45°

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Warranty:

18 months

Mounting Diameter:

30.5 mm

Shape Of Signaling Unit Head:

round

Product Certifications:

UL Listed || CSA

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Sale Per Indivisible Quantity:

1

Device Presentation:

complete product

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Operator Profile:

black key switch, unmarked

Depth:

98.5 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Terminals Description Iso N°1:

(13-14)NO || (23-24)NO

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Contact Operation:

slow-break

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Positive Opening:

without

Contacts Usage:

standard contacts

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Contacts Material:

silver alloy (Ag/Ni)

Circularity Profile:

ENVEOLI1710010EN

Catalog:

View

Datasheet:

View
