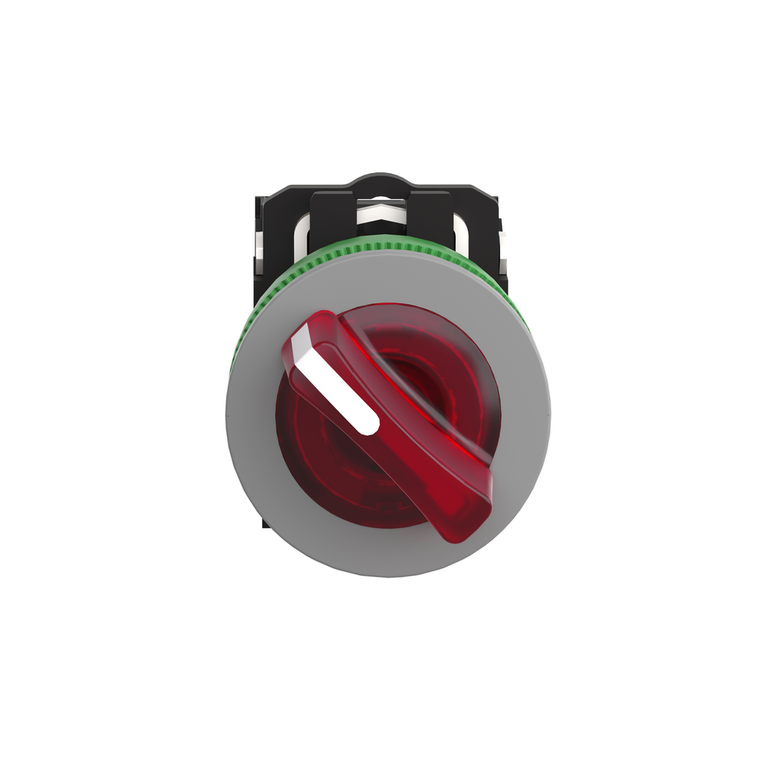

Schneider Electric XB5FK124M5C0 Flush Red Iss 2 Pos Stay Put 230 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FK124M5C0 Flush Red Iss 2 Pos Stay Put 230 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK124M5C0

UPC:

3606489760816

MPN:

Condition:

New

Contacts Material:

silver alloy (Ag/Ni)

Ik Degree Of Protection:

IK03 IEC 50102

Device Short Name:

XB5F

Rohs Exemption Information:

Yes

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Depth:

71 mm

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Device Presentation:

complete product

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Electrical Shock Protection Class:

class II IEC 60536

Bezel Material:

plastic colour plated grey

Contacts Usage:

standard contacts

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Shape Of Signaling Unit Head:

round

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

China Rohs Regulation:

X

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Height:

42 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Product Certifications:

UL Listed || CSA

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Operator Profile:

red standard handle, unmarked || red handle, unmarked

Contacts Type And Composition:

1 NO + 1 NC

Sale Per Indivisible Quantity:

1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Width:

36.6 mm

Contact Operation:

slow-break

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Mounting Diameter:

30.5 mm

Mechanical Durability:

1000000 cycles

Light Source:

universal LED

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Type Of Operator:

stay put || stay put handle

Range Of Product:

Harmony XB5

Operator Position Information:

2 positions 90°

Ambient Air Temperature For Operation:

-40-70 °C

Protective Treatment:

TH

Ambient Air Temperature For Storage:

-40-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Product Or Component Type:

illuminated selector switch

Supply Voltage Limits:

195-264 V AC

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Head Type:

built-in-flush

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Bulb Base:

integral LED
