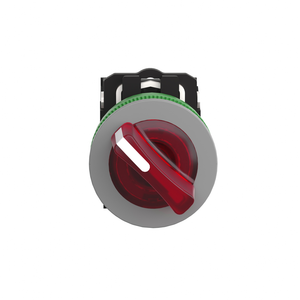

Schneider Electric XB5FK134M5 Flush Red Iss 3 Pos Stay Put 230 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5FK134M5 Flush Red Iss 3 Pos Stay Put 230 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK134M5

UPC:

3606481360809

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Width:

36.6 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Operator Position Information:

3 positions +/- 45°

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Depth:

71 mm

Bulb Base:

integral LED

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Contacts Type And Composition:

1 NO + 1 NC

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Mechanical Durability:

500000 cycles

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Sustainable Offer Status:

Green Premium product

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Contact Operation:

slow-break

Sale Per Indivisible Quantity:

1

Device Short Name:

XB5F

China Rohs Regulation:

X

Product Certifications:

UL Listed || CSA

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Supply Voltage Limits:

195-264 V AC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty:

18 months

Protective Treatment:

TH

Bezel Material:

dark grey plastic

Environmental Disclosure:

ENVPEP1710010EN

Electrical Shock Protection Class:

class II IEC 60536

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Contacts Material:

silver alloy (Ag/Ni)

Height:

42 mm

Device Presentation:

complete product

Mounting Diameter:

30.5 mm

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Ik Degree Of Protection:

IK03 IEC 50102

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Shape Of Signaling Unit Head:

round

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Operator Profile:

red standard handle, unmarked

Ambient Air Temperature For Operation:

-40-70 °C

Head Type:

built-in-flush

Circularity Profile:

ENVEOLI1710010EN

Light Source:

universal LED

Contacts Usage:

standard contacts

Ambient Air Temperature For Storage:

-40-70 °C

Type Of Operator:

stay put

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

illuminated selector switch

Range Of Product:

Harmony XB5
