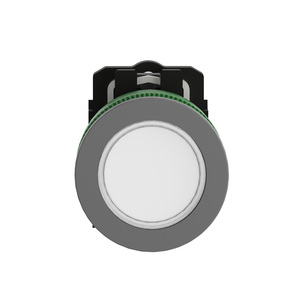

Schneider Electric XB5FVB1 Flush Complete Pilot Light 24V White
Schneider Electric
$72.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XB5FVB1 Flush Complete Pilot Light 24V White
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This flush mounted pilot light is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. Customized marking option through web customization tool is available in Schneider Electric website. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and white. The bezel and the fixing collar is plastic. The weight of this pilot light is 38 grams, height is 42 mm and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
- [Us] Rated Supply Voltage:
- 24 V AC/DC 50/60 Hz
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Bezel Material:
- dark grey plastic
- Vibration Resistance:
- 5 gn 12-500 Hz)IEC 60068-2-6
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Depth:
- 55 mm
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Light Source Colour:
- white
- China Rohs Regulation:
- X
- Bulb Base:
- integral LED
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Ambient Air Temperature For Operation:
- -40-70 °C
- Supply Voltage Limits:
- 19.2-30 V DC || 21.6-26.4 V AC
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Compatibility Code:
- XB5
- Device Short Name:
- XB5F
- Operator Additional Information:
- with plain lens
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electromagnetic Emission:
- class B IEC 55011
- Current Consumption:
- 18 mA
- Net Weight:
- 0.038 kg
- Width:
- 36.6 mm
- Product Certifications:
- UL Listed || CSA
- Mercury Free:
- Yes
- Electromagnetic Compatibility:
- electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con
- Fixing Collar Material:
- plastic
- Device Presentation:
- complete product
- Shock Resistance:
- 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Protective Treatment:
- TH
- Sustainable Offer Status:
- Green Premium product
- Head Type:
- built-in-flush
- Light Source:
- universal LED
- Sale Per Indivisible Quantity:
- 1
- Terminals Description Iso N°1:
- (X1-X2)PL
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Overvoltage Category:
- class II IEC 60536
- Product Or Component Type:
- pilot light
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Range Of Product:
- Harmony XB5
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Important Message:
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Signalling Type:
- steady
- Gcr Bridge:
- XB5FVCUST01
- Cap/Operator Or Lens Colour:
- white
- Height:
- 42 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1710010EN
- Service Life:
- 100000 h at rated voltage and 25 °C
- Rohs Exemption Information:
- Yes
- Ik Degree Of Protection:
- IK03 IEC 50102
