Schneider Electric XB5FVG5 Flush Complete Pilot Light 110 120V Or.

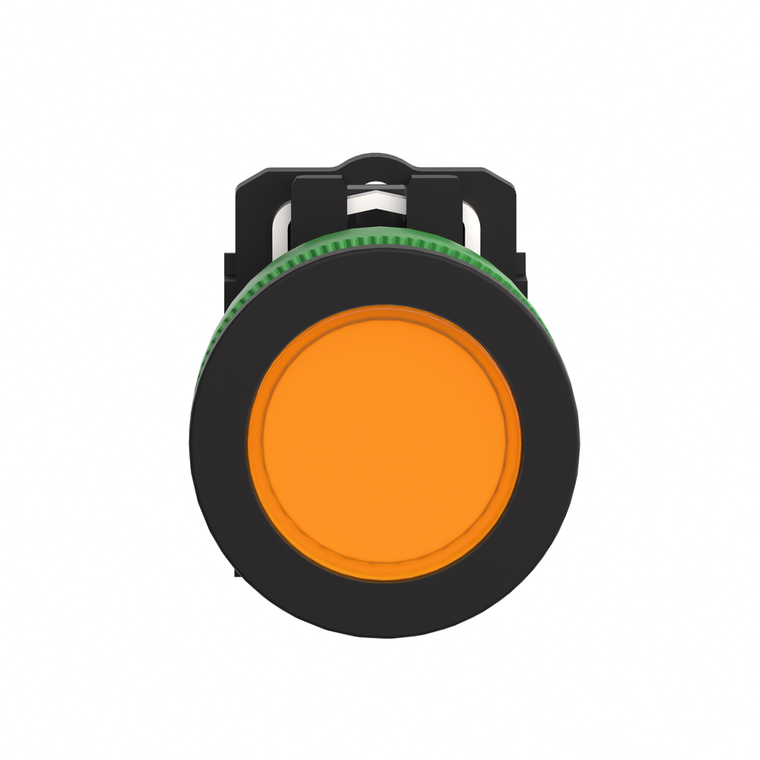

This flush mounted pilot light is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. Customized marking option through web customization tool is available in Schneider Electric website. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and orange. The bezel and the fixing collar is plastic. The weight of this pilot light is 38 grams, height is 42 mm and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
- Compatibility Code:
- XB5
- Service Life:
- 100000 h at rated voltage and 25 °C
- Width:
- 36.6 mm
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ik Degree Of Protection:
- IK03 IEC 50102
- Device Presentation:
- complete product
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Fixing Collar Material:
- plastic
- Shock Resistance:
- 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Product Certifications:
- UL Listed || CSA
- Gcr Bridge:
- XB5FVCUST01
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Protective Treatment:
- TH
- Head Type:
- built-in-flush
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Rohs Exemption Information:
- Yes
- Device Short Name:
- XB5F
- Important Message:
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Supply Voltage Limits:
- 100-132 V AC
- Cap/Operator Or Lens Colour:
- orange
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- pilot light
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Signalling Type:
- steady
- Bulb Base:
- integral LED
- Current Consumption:
- 14 mA
- China Rohs Regulation:
- X
- Height:
- 42 mm
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Light Source:
- universal LED
- Circularity Profile:
- ENVEOLI1710010EN
- Bezel Material:
- dark grey plastic
- Operator Additional Information:
- with plain lens
- Depth:
- 55 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electromagnetic Emission:
- class B IEC 55011
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP1710010EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Range Of Product:
- Harmony XB5
- Overvoltage Category:
- class II IEC 60536
- Terminals Description Iso N°1:
- (X1-X2)PL
- Light Source Colour:
- orange
- Mounting Diameter:
- 30.5 mm
- Vibration Resistance:
- 5 gn 12-500 Hz)IEC 60068-2-6
- Net Weight:
- 0.038 kg
- Electromagnetic Compatibility:
- electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity:
- 1
- Shape Of Signaling Unit Head:
- round
- [Us] Rated Supply Voltage:
- 110...120 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
