Schneider Electric

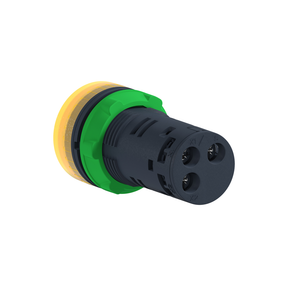

Schneider Electric XB5KS2G8 Continuous Orintermitent Illuminated Ye

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5KS2G8 Continuous Orintermitent Illuminated Ye

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5KS2G8

UPC:

3606481352477

MPN:

Condition:

New

Depth:

55 mm

China Rohs Regulation:

X

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

annunciator

Supply Frequency:

50/60 Hz

Net Weight:

0.024 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile:

N/A

Standards:

IEC 60947-1 || IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || JIS C8201-1 || IEC 60529 || IEC 62262 || IEC 50102

Environmental Disclosure:

ENVPEP1710008EN

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Width:

29 mm

Bezel Material:

plastic

Overvoltage Category:

class II IEC 60536

[Us] Rated Supply Voltage:

110...120 V +/- 10 %

Noise Level:

90 dB 6.8 kHz 0.1 m +/- 10 %

Current Consumption:

<= 20 mA

Cap/Operator Or Lens Colour:

yellow

Mounting Diameter:

22.5 mm

Height:

29 mm

Supply Circuit Type:

AC/DC

Resistance To High Pressure Washer:

9000000 Pa 80 °C 0.1 m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Protective Treatment:

TH

Product Certifications:

UL Listed || CSA || BV

Ambient Air Temperature For Operation:

-40-70 °C

Range Of Product:

Harmony XB5

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Signalling Type:

continuous or intermittent tone

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Datasheet:

View
