Schneider Electric

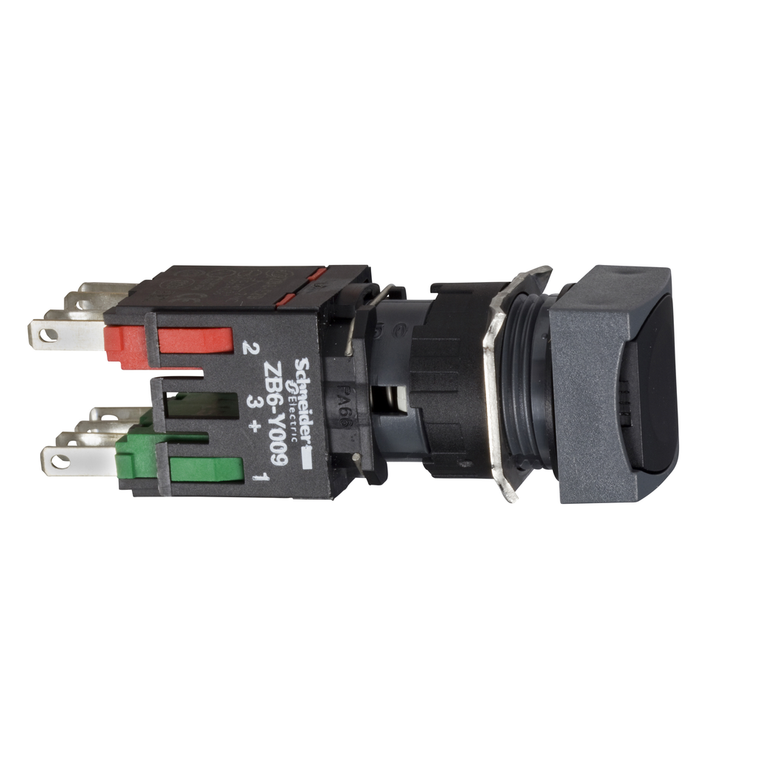

Schneider Electric XB6CA25B Black Pushbut To N Diam 16 Flush Spring

SKU:

XB6CA25B

UPC:

3389110764413

MPN:

Condition:

New

Operating Position:

any position

Sustainable Offer Status:

Green Premium product

Shape Of Signaling Unit Head:

square

Operator Profile:

black flush, unmarked

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operating Force:

3.5 N NO changing electrical state || 4.5 N NC changing electrical state

Mechanical Durability:

2000000 cycles

Protective Treatment:

TC

Mounting Diameter:

16 mm

Contact Operation:

slow-break

China Rohs Regulation:

X

Sale Per Indivisible Quantity:

1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Electrical Durability:

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Storage:

-40-70 °C

Warranty:

18 months

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

Electrical Shock Protection Class:

class II IEC 61140

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Type Of Operator:

spring return

Cad Overall Height:

18 mm

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

Contacts Material:

silver alloy (Ag/Ni)

Cad Overall Width:

18 mm

Short-Circuit Protection:

6 A cartridge fuse gG

Operating Travel:

1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)

Product Or Component Type:

complete push-button

Cad Overall Depth:

57 mm

Bezel Material:

plastic

Toxic Heavy Metal Free:

Yes

[Uimp] Rated Impulse Withstand Voltage:

4 kV EN/IEC 60947-1

Ambient Air Temperature For Operation:

-25-70 °C

Environmental Disclosure:

ENVPEP1710010EN

Contacts Type And Composition:

1 NO + 1 NC

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Standards:

EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || JIS C 4520 || JIS C 852 || EN/IEC 60947-5-5 || CSA C22.2 No 14

Ip Degree Of Protection:

IP65 IEC 60529

Product Certifications:

GOST || UL || CCC || CSA

Reach Free Of Svhc:

Yes

Device Short Name:

XB6

Range Of Product:

Harmony XB6

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Terminals Description Iso N°1:

(13-14)NO || (21-22)NC

Net Weight:

0.022 kg

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Connections - Terminals:

Faston connectors 2.8 x 0.5 mm

Circularity Profile:

ENVEOLI1710010EN
