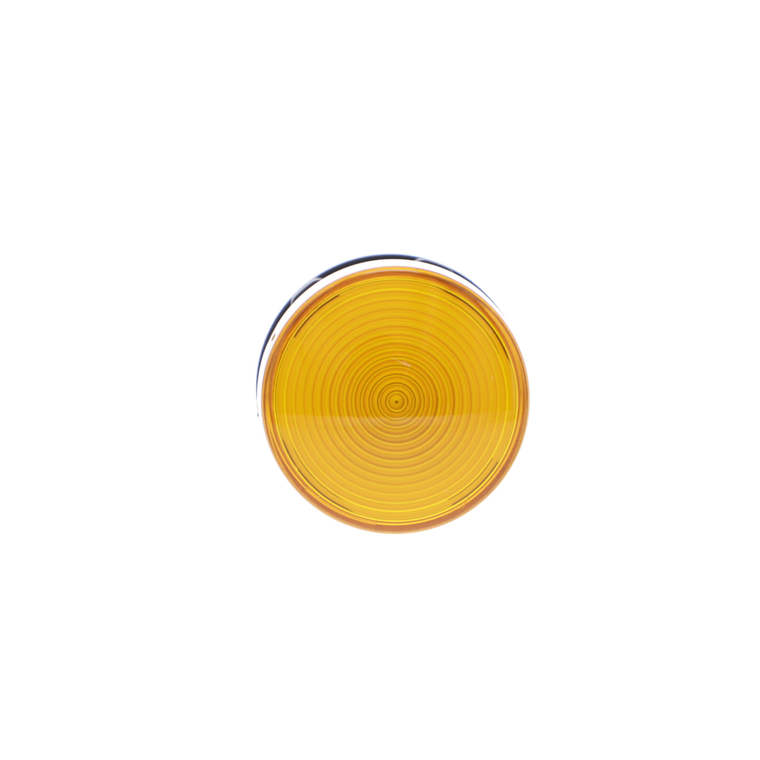

Schneider Electric XB7EV08MP Pilot Light Led Orange 230V Ac Pack of 100
Schneider Electric
$3,600.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XB7EV08MP Pilot Light Led Orange 230V Ac Pack of 100
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB7, plain lens monolithic orange pilot light is supplied with 230V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
- Environmental Disclosure:
- ENVPEP1805012EN
- Light Source:
- LED
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TH
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Height:
- 29 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Reach Free Of Svhc:
- Yes
- Cap/Operator Or Lens Colour:
- orange
- Signalling Type:
- steady
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Supply Voltage Limits:
- 195-264 V AC
- Device Mounting:
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
- Nema Degree Of Protection:
- NEMA 4 UL 50 E || NEMA 12 UL 50 E
- Shape Of Screw Head:
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Fixing Center:
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Mercury Free:
- Yes
- Bulb Base:
- integral LED
- Warranty:
- 18 months
- Fixing Mode:
- fixing nut beneath head 2-2.4 N.m
- Device Presentation:
- monolithic product
- Device Short Name:
- XB7
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- round
- Service Life:
- 70000 h at rated voltage and 25 °C
- Standards:
- IEC 60947-5-1 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Terminals Description Iso N°1:
- (X1-X2)PL
- China Rohs Regulation:
- X
- Width:
- 29 mm
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Net Weight:
- 0.02 kg
- Mounting Diameter:
- 22 mm
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Current Consumption:
- 16...20 mA
- Electromagnetic Compatibility:
- disturbing field emission class B conforming to IEC 55011
- Shock Resistance:
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- [Us] Rated Supply Voltage:
- 230...240 V AC 50/60 Hz
- Product Or Component Type:
- pilot light
- Sustainable Offer Status:
- Green Premium product
- Sale Per Indivisible Quantity:
- 10
- Range Of Product:
- Harmony XB7
- Circularity Profile:
- ENVEOLI1805012EN
- Overvoltage Category:
- class II IEC 60536
- Ip Degree Of Protection:
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Ambient Air Temperature For Operation:
- -25-70 °C
- Depth:
- 54 mm
