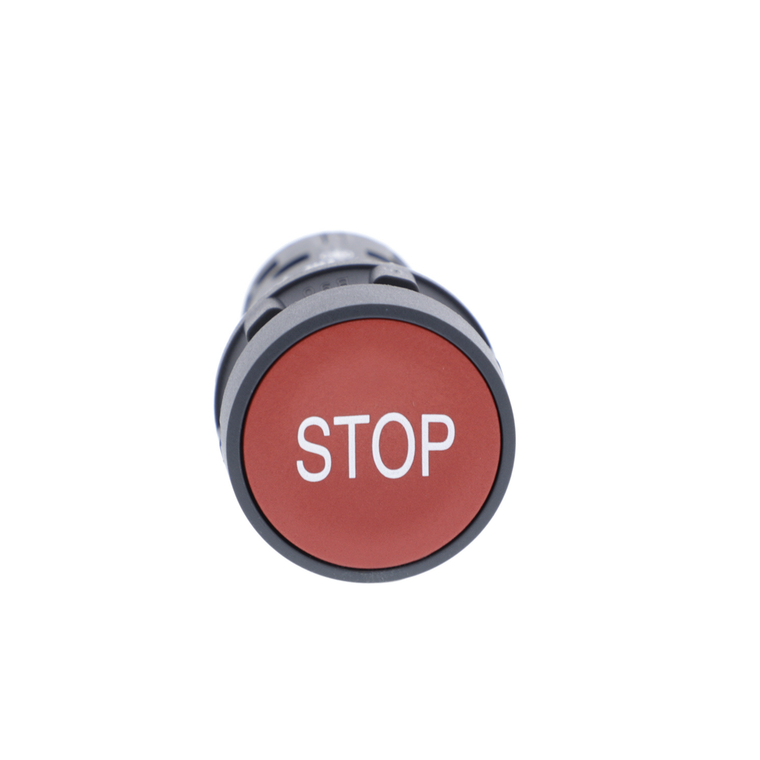

Schneider Electric XB7NA4234 Pb - Spring Rtn, Red - 1Nc -White [Stop]
Schneider Electric
$16.43
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB7, monolithic red push button marked with a "STOP" lettering operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
- Environmental Disclosure:
- ENVPEP1805012EN
- Cad Overall Depth:
- 51.5 mm
- Fixing Center:
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Product Certifications:
- CCC || GOST
- Device Presentation:
- monolithic product
- Protective Treatment:
- TH
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Standards:
- IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
- Circularity Profile:
- ENVEOLI1805012EN
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony XB7
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
- Warranty:
- 18 months
- [Ie] Rated Operational Current:
- 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Positive Opening:
- with NC contact IEC 60947-5-1 appendix K
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Nema Degree Of Protection:
- NEMA 12 UL 50 E || NEMA 3 UL 50 E
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Short-Circuit Protection:
- 4 A cartridge fuse gG IEC 60947-5-1
- Cad Overall Width:
- 29 mm
- Device Mounting:
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
- Operator Profile:
- red flush, STOP white)
- Mechanical Durability:
- 1000000 cycles
- Fixing Mode:
- fixing nut beneath head 2-2.4 N.m
- Electrical Reliability:
- λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Shape Of Signaling Unit Head:
- round
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Terminals Description Iso N°1:
- (11-12)NC
- Ip Degree Of Protection:
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Product Or Component Type:
- push-button
- Net Weight:
- 0.021 kg
- Cad Overall Height:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Screw Head:
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Electrical Durability:
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Sale Per Indivisible Quantity:
- 10
- Contacts Type And Composition:
- 1 NC
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Type Of Operator:
- spring return
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -25-70 °C
- Contact Operation:
- slow-break
- Shock Resistance:
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Rohs Exemption Information:
- Yes
- Overvoltage Category:
- class II IEC 61140
- Mercury Free:
- Yes
- Device Short Name:
- XB7
- Mounting Diameter:
- 22 mm
