Schneider Electric XB7NL45 Pb - Proj Spring Rtn, Red -No And Nc Pack of 10

Schneider Electric XB7NL45 Pb - Proj Spring Rtn, Red -No And Nc Pack of 10

Schneider Electric
SKU:
XB7NL45
|
UPC:
3606480470691
Availability:
Factory stock
$308.70
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

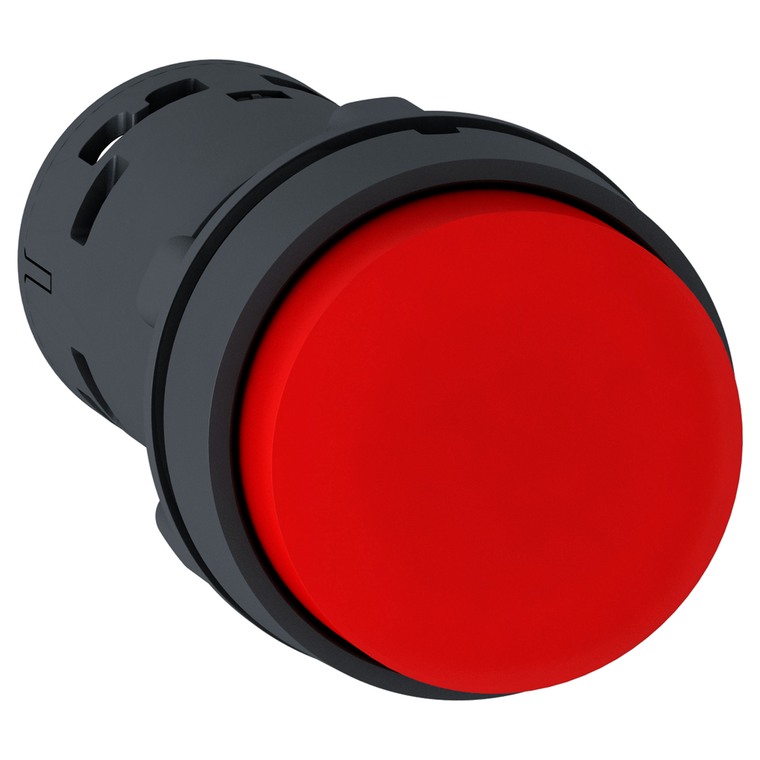

This Harmony XB7, projecting monolithic red push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Environmental Disclosure:
ENVPEP1805012EN
Sale Per Indivisible Quantity:
10
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Electrical Durability:
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Ambient Air Temperature For Storage:
-40-70 °C
Ambient Air Temperature For Operation:
-25-70 °C
Rohs Exemption Information:
Yes
Device Presentation:
monolithic product
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Sustainable Offer Status:
Green Premium product
Type Of Operator:
spring return
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Cad Overall Width:
29 mm
Short-Circuit Protection:
4 A cartridge fuse gG IEC 60947-5-1
Product Or Component Type:
push-button
Contacts Type And Composition:
1 NO + 1 NC
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Nema Degree Of Protection:
NEMA 12 UL 50 E || NEMA 3 UL 50 E
Cad Overall Depth:
57.5 mm
Mechanical Durability:
1000000 cycles
Device Short Name:
XB7
Protective Treatment:
TH
Mercury Free:
Yes
Circularity Profile:
ENVEOLI1805012EN
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Toxic Heavy Metal Free:
Yes
Mounting Diameter:
22 mm
Warranty:
18 months
Positive Opening:
with NC contact IEC 60947-5-1 appendix K
Net Weight:
0.021 kg
Product Certifications:
GOST || CCC
Shape Of Signaling Unit Head:
round
Standards:
CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Electrical Reliability:
λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
Operator Profile:
red projecting, unmarked
Cad Overall Height:
29 mm
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Range Of Product:
Harmony XB7
Overvoltage Category:
class II IEC 61140
Contact Operation:
slow-break
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
