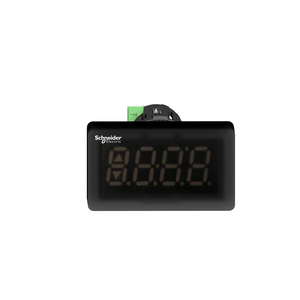

Schneider Electric XBH1AA0G4 Digital Panel Meter Green Led Display
Schneider Electric
$60.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XBH1AA0G4 Digital Panel Meter Green Led Display
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This display module provides a versatile interface for your machines It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion (strength), and vibration (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments
- Solid State Output Type:
- 2 x power MOSFET
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Flame Retardance:
- UL94-V1
- Ambient Air Temperature For Storage:
- -20-85 °C
- Height:
- 29.5 mm
- Analogue Input Range:
- 4...20 mA DC
- Product Or Component Type:
- display module
- Housing Material:
- plastic
- Display Digits:
- 4 - 14 mm
- Connections - Terminals:
- spring terminals, 1 x 0.2...1 mm² AWG 24...AWG 17)
- Display Colour:
- green
- Standards:
- IEC 61326-1
- Temperature Drift:
- 50 ppm/°C
- Brightness:
- fixed
- Depth:
- 78.2 mm
- Mounting Diameter:
- 22.5 mm
- Ip Degree Of Protection:
- IP65 IEC 60529 front panel)
- Counting Capacity:
- -999...9999
- Net Weight:
- 0.032 kg
- Discrete Output Voltage:
- 30 V DC
- Ambient Air Temperature For Operation:
- -20-60 °C
- Range Of Product:
- Harmony XB5
- Accuracy:
- +/- 0.15 % of the measuring range + 1 digit
- Tightening Torque:
- 1.3 N.m +/- 0.2 N.m || 11.5 lb.in +/- 1.8 lb.in
- Discrete Output Current:
- 0.5 A
- Width:
- 51.5 mm
- Maximum Voltage Drop:
- 6 V
- Display Type:
- 7 segments LED
- Eu Rohs Directive:
- Under investigation
