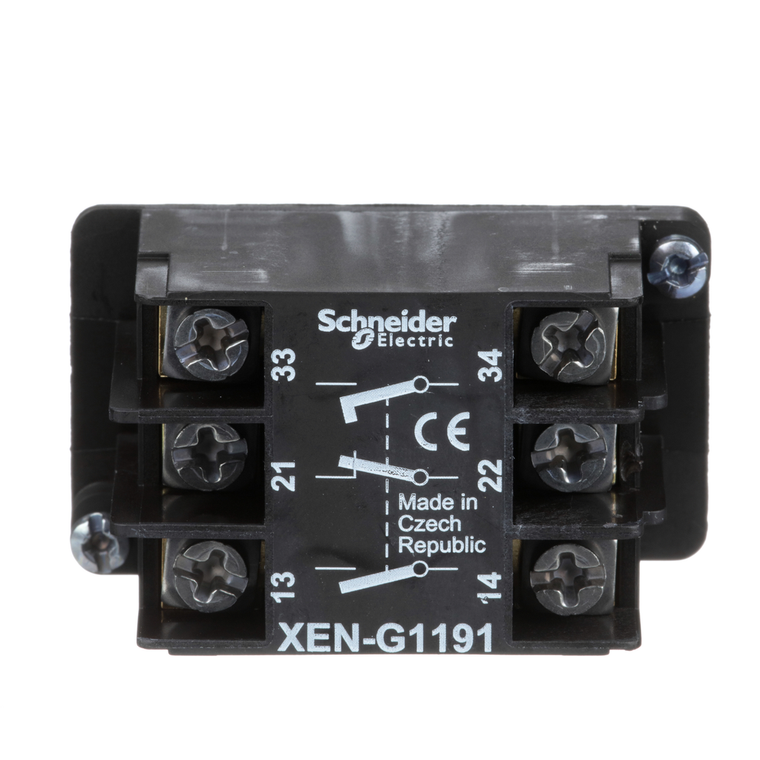

Schneider Electric XENG1191 Spring Return Contact Block 1 Nc And 2 N

(No reviews yet) Write a Review

Write a Review

Schneider Electric XENG1191 Spring Return Contact Block 1 Nc And 2 N

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XENG1191

UPC:

3389110645705

MPN:

Condition:

New

Terminals Description Iso N°1:

(21-22)NC || (33-34)NO_CL || (13-14)NO

Environmental Disclosure:

ENVPEP120101EN

Contacts Type And Composition:

1 NC + 2 NO

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Component Name:

XENG

Product Compatibility:

XACA || XACA9...head

Contact Code Designation:

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Mounting Of Block:

front mounting

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Toxic Heavy Metal Free:

Yes

Overvoltage Category:

class II IEC 61140

Shock Resistance:

100 gn IEC 60068-2-27

Standards:

UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Operating Force:

18 N

Reach Free Of Svhc:

Yes

Mercury Free:

Yes

Electrical Circuit Type:

control circuit

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Net Weight:

0.04 kg

Contact Block Type:

single

[Ithe] Conventional Enclosed Thermal Current:

0.416666666666667

Vibration Resistance:

15 gn 10-500 Hz)IEC 60068-2-6

Short-Circuit Protection:

10 A fuse protection cartridge gG

Contact Block Application:

2-speed

Contact Operation:

slow-break || staggered

Range Of Product:

Harmony XAC

Rated Operational Power In W:

40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Warranty:

18 months

China Rohs Regulation:

X

Product Or Component Type:

contact block

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Operation:

-25-70 °C

Maximum Resistance Across Terminals:

25 MOhm

Ambient Air Temperature For Storage:

-40-70 °C

Type Of Operator:

spring return

Mechanical Durability:

1000000 cycles

Connections - Terminals:

screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Circularity Profile:

N/A

Rohs Exemption Information:

Yes
