Reach Free Of Svhc:
Yes
Shock Resistance:
100 gn IEC 60068-2-27
Ambient Air Temperature For Operation:
-25-70 °C
Short-Circuit Protection:
10 A fuse protection cartridge gG
Toxic Heavy Metal Free:
Yes
Contact Code Designation:
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

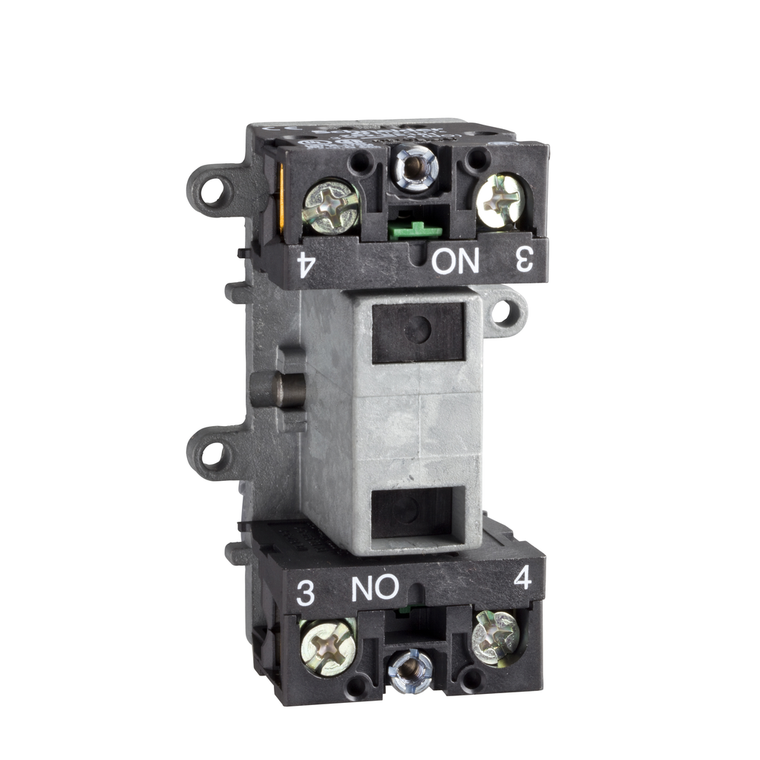

Component Name:
XENG
Rohs Exemption Information:
Yes
Contacts Type And Composition:
2 NO
Mercury Free:
Yes
Maximum Resistance Across Terminals:
25 MOhm
Ambient Air Temperature For Storage:
-40-70 °C
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1

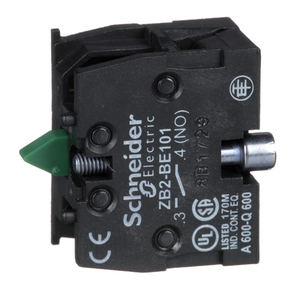

Product Or Component Type:
contact block
Product Compatibility:
XACA
Warranty:
18 months
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Operating Force:
15 N
Mechanical Durability:
1000000 cycles
Vibration Resistance:
15 gn 10-500 Hz)IEC 60068-2-6
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Overvoltage Category:
class II IEC 61140
China Rohs Regulation:
X
Terminals Description Iso N°1:
(13-14)NO || B
Rated Operational Power In W:
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Contact Block Type:
double
[Ithe] Conventional Enclosed Thermal Current:
0.416666666666667
Standards:
UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1
Contact Block Application:
single speed
Electrical Circuit Type:
control circuit
Type Of Operator:
latching
Range Of Product:
Harmony XAC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contact Operation:
slow-break
Mounting Of Block:
front mounting
Connections - Terminals:
screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking...
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20...
