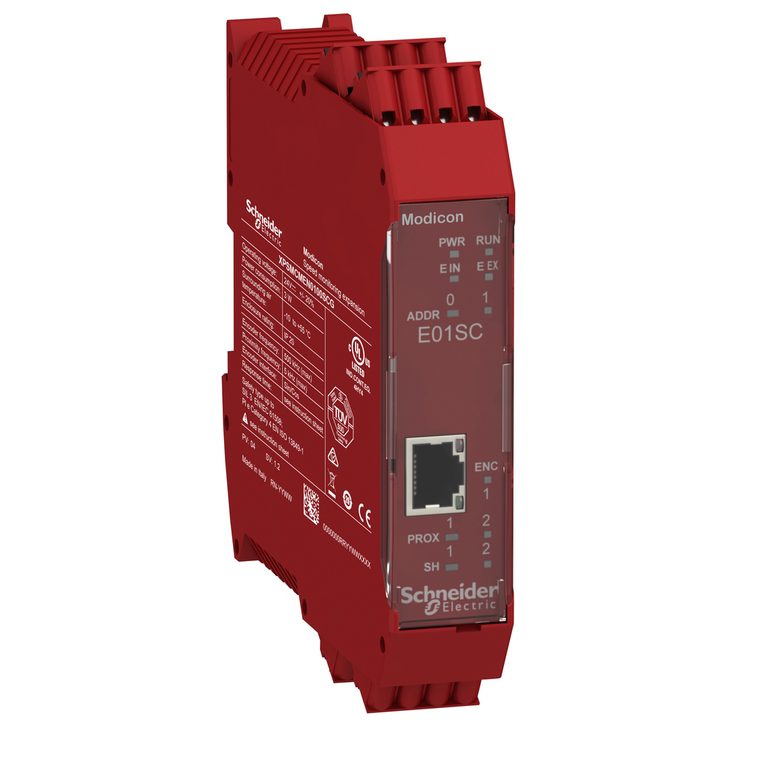

Schneider Electric XPSMCMEN0100SCG Speed Mon. 1 Sin/Cos

(No reviews yet) Write a Review
SKU:
XPSMCMEN0100SCG
UPC:
3606480748691
Condition:
New
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 61800-5
Maximum Input Frequency:
5 kHz sensor || 500 kHz encoder SinCos
Cable Cross Section:
0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without
Integrated Connection Type:
backplane expansion bus
Discrete Input Voltage:
24 V DC
Pollution Degree:
2
Relative Humidity:
10-95 %
Pvc Free:
Yes
Electrical Connection:
1 connector RJ45 EIA/TIA-568-A
Electrical Connection:
spring terminal
Local Signalling:
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 1 LED yellow ENC encoder connection status || 2 LEDs yellow PROX proximity sensors connec
Connections - Terminals:
1 spring clamp terminals, removable terminal block || 2 spring clamp terminals, removable terminal block
Function Of Module:
speed monitoring
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - te
Power Dissipation In W:
3 W
Product Or Component Type:
safe speed monitoring module
Ambient Air Temperature For Operation:
-10-55 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Storage:
-20-85 °C
Net Weight:
0.28 kg
Range Of Product:
Preventa Safety automation
Insulation:
250 V AC between power supply and housing EN/IEC 61800-5-1
Depth:
22.5 mm
Sustainable Offer Status:
Green Premium product
Power Consumption In W:
3 W
Mounting Support:
omega 35 mm DIN rail EN 50022
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ip Degree Of Protection:
IP20 enclosure)
Product Certifications:
RCM || cULus || TÜV
Environmental Disclosure:
ENVPEP1409010EN
Number Of Terminal Blocks:
4
Rohs Exemption Information:
Yes
Mercury Free:
Yes
China Rohs Regulation:
X
[Us] Rated Supply Voltage:
24 V - 20...20 % DC
Circularity Profile:
ENVEOLI1409010EN
Standards:
EN/IEC 61800-5-1 || IEC 62061 || EN/IEC 61508 || EN/ISO 13849-1 || EN/IEC 61496-1
Device Short Name:
XPSMCM
Width:
114.5 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sensor Type:
inductive proximity sensor
Overvoltage Category:
II
Service Life:
20 year(s)
Height:
99 mm
Shock Resistance:
10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
Quality Labels:
CE
Reach Free Of Svhc:
Yes
Safety Level:
can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || type 4 EN/IEC 61496-1 || SILCL 3 IEC 62061
Vibration Resistance:
+/-0.35 mm 10-55 Hz)EN/IEC 61496-1
$2,121.75

Description

This Modicon MCM safe speed monitoring module has 1 Sin/Cos encoder input (with RJ45 connector) and 2 proximity sensor inputs (connection via terminal) and is fitted with captive spring clamp terminals. It is designed to monitor zero speed control, max speed (limited speed), speed range and direction. It has a rated supply voltage of 24V DC. It offers up to four logically selectable limited speed thresholds (freely configurable via SoSafe Configurable software) for each logical intput (axis), and a maximum input frequency of 500kHz (for encoders) and 5kHz for proximity sensors. It completes your safety CPU with safe-speed monitoring function, ideal for cutting machines like band-saw, circular saw and grinding machines. This module figures LEDs on its front face, displaying the status (power supply, reset, internal or external errors, node address, encoder or proximity sensors connection status, speed monitoring status). The safe speed monitoring module is connected to the safety controller via the backplane expansion connector. It weighs 0.28kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. This module can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL 3 conforming to IEC 62061. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safe speed monitoring module instals on Omega 35mm DIN rail conforming to EN 50022, and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
