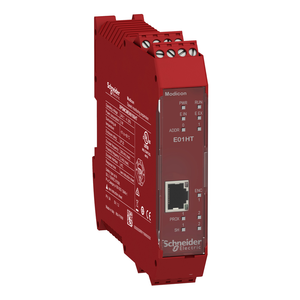

Schneider Electric XPSMCMEN0200HT Speed Mon. 2 Htl Exp. Screw Term

(No reviews yet) Write a Review

Write a Review

Schneider Electric XPSMCMEN0200HT Speed Mon. 2 Htl Exp. Screw Term

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XPSMCMEN0200HT

UPC:

3606480748745

MPN:

Condition:

New

Mercury Free:

Yes

Product Or Component Type:

safe speed monitoring module

Circularity Profile:

ENVEOLI1409010EN

Depth:

22.5 mm

Net Weight:

0.3 kg

China Rohs Regulation:

X

Range Of Product:

Preventa Safety automation

Sensor Type:

inductive proximity sensor

Width:

114.5 mm

Integrated Connection Type:

backplane expansion bus

Electromagnetic Compatibility:

electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev

Cable Cross Section:

0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without

Function Of Module:

speed monitoring

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Service Life:

20 year(s)

Power Consumption In W:

3 W

Number Of Terminal Blocks:

4

Ip Degree Of Protection:

IP20 enclosure)

Discrete Input Voltage:

24 V DC

Quality Labels:

CE

Device Short Name:

XPSMCM

[Us] Rated Supply Voltage:

24 V - 20...20 % DC

Product Certifications:

cULus || TÜV || RCM

Vibration Resistance:

+/-0.35 mm 10-55 Hz)IEC 61496-1

Environmental Disclosure:

ENVPEP1409010EN

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Storage:

-20-85 °C

Ambient Air Temperature For Operation:

-10-55 °C

Height:

99 mm

Insulation:

250 V AC between power supply and housing IEC 61800-5-1

Power Dissipation In W:

3 W

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 61800-5

Shock Resistance:

10 gn 16 ms) 1000 shocks on each axis IEC 61496-1

Electrical Connection:

1 connector RJ45 EIA/TIA-568-A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Pvc Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Standards:

IEC 62061 || ISO 13849-1 || IEC 61508 || IEC 61496-1 || IEC 61800-5-1

Mounting Support:

omega 35 mm DIN rail EN 50022

Maximum Input Frequency:

5 kHz sensor || 300 kHz encoder HTL

Local Signalling:

1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 2 LEDs yellow PROX proximity sensors connection status || 2 LEDs yellow SH speed monitori

Pollution Degree:

2

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Relative Humidity:

10-95 %

Electrical Connection:

screw terminal

Rohs Exemption Information:

Yes

Safety Level:

can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || type 4 IEC 61496-1 || SILCL 3 IEC 62061

Overvoltage Category:

II

Connections - Terminals:

2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
