Schneider Electric XVBC4B8 Yellow Flashing Unit Yellow Flashin
Schneider Electric
$141.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

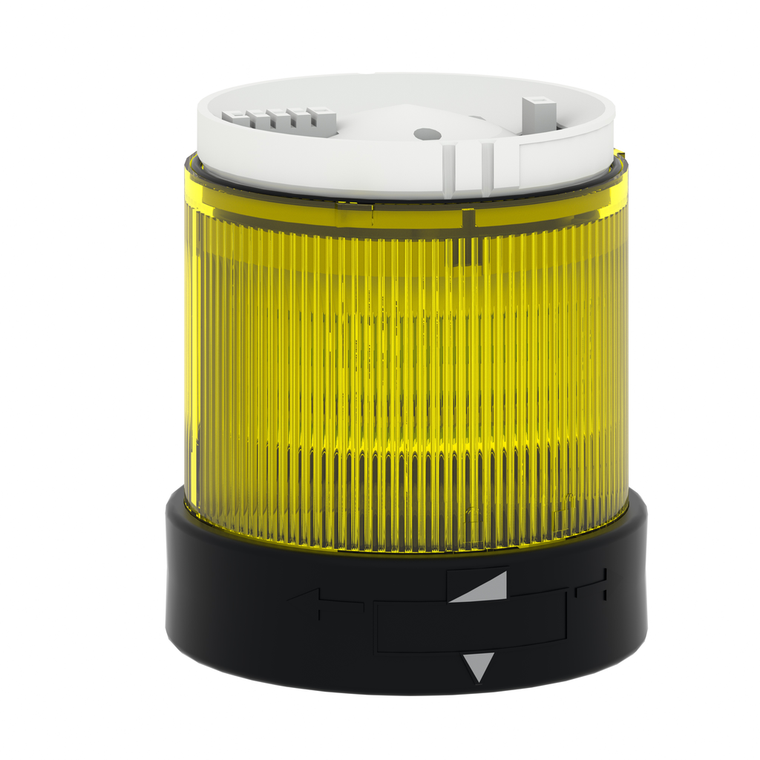

Schneider Electric XVBC4B8 Yellow Flashing Unit Yellow Flashin
This yellow illuminated unit is designed to be connected with base to create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Flashing Frequency:
- 1-1 Hz
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Nema Degree Of Protection:
- Type 4X UL indoor)
- Assembly Style:
- customer assembly, up to 5 units
- Cad Overall Height:
- 63 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ui] Rated Insulation Voltage:
- 250 V IEC 60947-1
- Net Weight:
- 0.16 kg
- Product Certifications:
- CCC || EAC || CSA C22-2 No 14 || UL 508
- Maximum Power Dissipation In W:
- 7 W
- Component Name:
- XVBC
- Environmental Disclosure:
- ENVPEP070907EN
- Pollution Degree:
- 2
- Mounting Diameter:
- 70 mm
- China Rohs Regulation:
- X
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
- Electrical Shock Protection Class:
- class I on support tube IEC 61140 || class II on base unit IEC 61140
- Beacon Or Indicator Bank Unit Type:
- illuminated unit
- Bulb Type:
- incandescent BA 15d || protected LED || incandescent
- Ambient Air Temperature For Storage:
- -40-70 °C
- Protective Treatment:
- TC
- Sustainable Offer Status:
- Green Premium product
- Signalling Type:
- flashing
- Product Or Component Type:
- indicator bank
- Nominal Voltage Limit:
- 0.85...1.1 Un IEC 60947-5-1
- Connections - Terminals:
- screw clamp terminals, <= 1 x 1.5 mm² with cable end
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Light Source:
- bulb not included, yellow
- Range Of Product:
- Harmony XVB Universal
- Cad Overall Width:
- 70 mm
- Warranty:
- 18 months
- Material:
- polycarbonate
- [Us] Rated Supply Voltage:
- 24 V AC || 24...48 V DC
- Cad Overall Depth:
- 70 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Ambient Air Temperature For Operation:
- -25-50 °C incandescent || -25-50 °C LED
- Standards:
- EN/IEC 60947-5-1
