Schneider Electric XVBC4M5 Orange Flashing Unit Orange Flashin
Schneider Electric
$141.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XVBC4M5 Orange Flashing Unit Orange Flashin

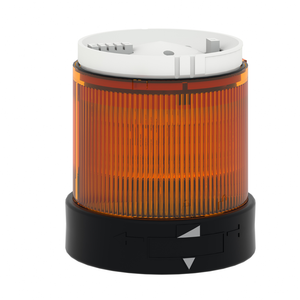

This orange illuminated unit is designed to be connected with base to create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony XVB Universal
- Cad Overall Depth:
- 70 mm
- Nema Degree Of Protection:
- Type 4X UL indoor)
- Nominal Voltage Limit:
- 0.85...1.1 Un IEC 60947-5-1
- China Rohs Regulation:
- X
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Beacon Or Indicator Bank Unit Type:
- illuminated unit
- Cad Overall Width:
- 70 mm
- Environmental Disclosure:
- ENVPEP070907EN
- Rohs Exemption Information:
- Yes
- Bulb Type:
- incandescent BA 15d || protected LED
- Mounting Diameter:
- 70 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
- Ambient Air Temperature For Storage:
- -40-70 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Signalling Type:
- flashing
- Pollution Degree:
- 2
- Mercury Free:
- Yes
- Cad Overall Height:
- 63 mm
- Flashing Frequency:
- 1-1 Hz
- Connections - Terminals:
- screw clamp terminals, <= 1 x 1.5 mm² with cable end
- Maximum Power Dissipation In W:
- 7 W
- [Us] Rated Supply Voltage:
- 48...230 V AC
- Ambient Air Temperature For Operation:
- -25-50 °C incandescent || -25-50 °C LED
- Material:
- polycarbonate
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- CCC || EAC || CSA C22-2 No 14 || UL 508
- Assembly Style:
- customer assembly, up to 5 units
- Net Weight:
- 0.16 kg
- Electrical Shock Protection Class:
- class I on support tube IEC 61140 || class II on base unit IEC 61140
- Component Name:
- XVBC
- Protective Treatment:
- TC
- Light Source:
- bulb not included, orange
- Product Or Component Type:
- indicator bank
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- [Ui] Rated Insulation Voltage:
- 250 V IEC 60947-1
- Standards:
- IEC 60947-5-1
