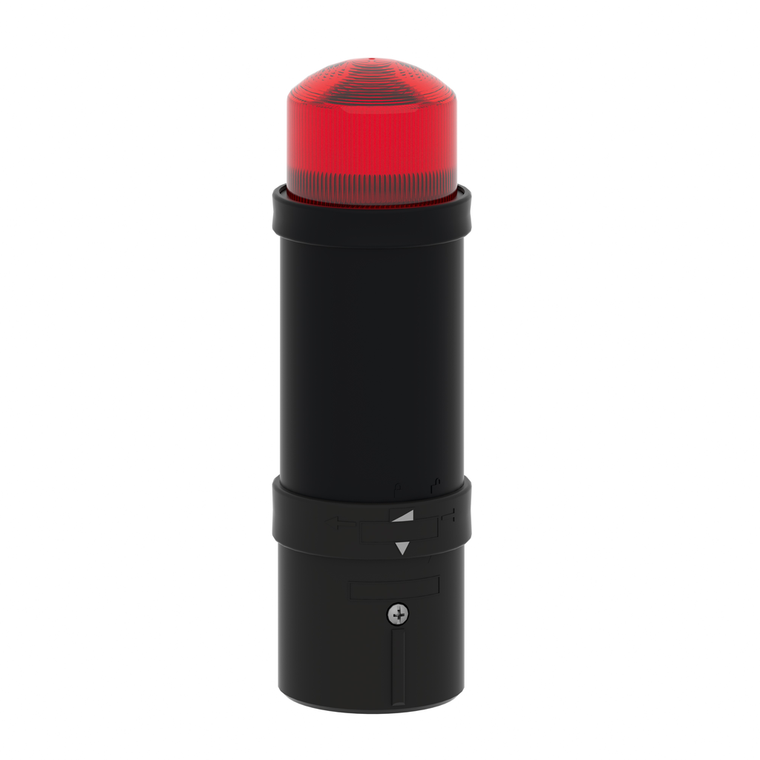

Schneider Electric XVBL8M4 Illuminated Beacon Red 10 Joule Flash 23

Schneider Electric XVBL8M4 Illuminated Beacon Red 10 Joule Flash 23

Schneider Electric
SKU:
XVBL8M4
|
UPC:
3389110844979
$366.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This illuminated complete beacon is designed as lighting accessory for tower light. Its flash discharge tube offers a strobe light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Additional Information
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Cad Overall Height:
232 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nominal Voltage Limit:
0.85...1.1 Un IEC 60947-5-1
Environmental Disclosure:
ENVPEP070907EN
Beacon Or Indicator Bank Unit Type:
base unit direct or tube fixing || illuminated unit
Mounting Diameter:
70 mm
[Us] Rated Supply Voltage:
230 V AC
Connections - Terminals:
screw clamp terminals, <= 1 x 1.5 mm² with cable end
Protective Treatment:
TC
Product Or Component Type:
complete beacon
Ip Degree Of Protection:
IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
[Ui] Rated Insulation Voltage:
250 V IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Sustainable Offer Status:
Green Premium product
Bulb Type:
flash discharge tube
Nema Degree Of Protection:
Type 4X UL indoor)
Standards:
IEC 60947-5-1
Net Weight:
0.46 kg
Range Of Product:
Harmony XVB Universal
Flash Energy:
10 J
Circularity Profile:
N/A
Material:
glass reinforced polyamide: base unit || polycarbonate: illuminated unit
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Component Name:
XVBL
Electrical Shock Protection Class:
class I on support tube IEC 61140 || class II on base unit IEC 61140
Product Certifications:
CCC || EAC || CSA C22-2 No 14 || UL 508
China Rohs Regulation:
X
Cad Overall Depth:
70 mm
Warranty:
18 months
Flashing Frequency:
1 Hz
Signalling Type:
flashing
Light Source:
integral flash discharge tube, red
Terminals Description Iso N°1:
(GND)GROUND || (COM-1)PW
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Cad Overall Width:
70 mm
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Current Consumption:
< 280 mA AC
