Schneider Electric

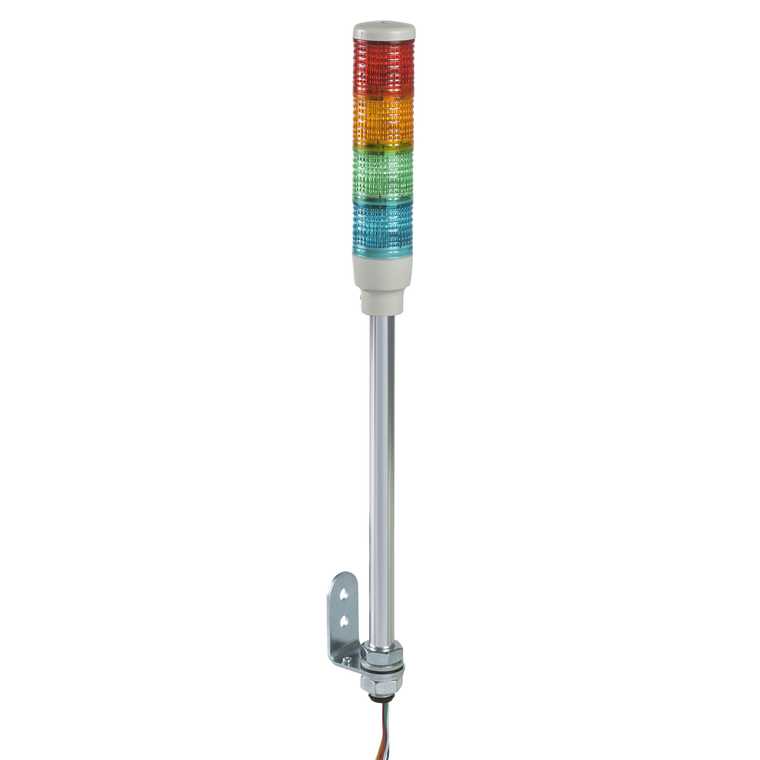

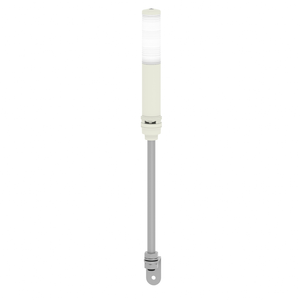

Schneider Electric XVC4B4 Indicating Banks 40Mm Led Pole Mount 24

SKU:

XVC4B4

UPC:

3606480032400

MPN:

Condition:

New

Awg Gauge:

AWG 22

Mounting Location:

on support tube, 17 mm

Supply Circuit Type:

AC/DC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

X

Light Source:

LED steady red || LED steady orange || LED steady green || LED steady blue

Material:

polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover || SGP (chromium-plated): support tube

Electrical Shock Protection Class:

class I IEC 61140

Ip Degree Of Protection:

IP23 vertical surface installation IEC 60529

Ambient Air Temperature For Storage:

-35-70 °C

Environmental Disclosure:

ENVPEP1904008EN

Product Or Component Type:

complete pre-wired monolithic tower light

Mounting Diameter:

40 mm

Cable Cross Section:

0.33-0.33 mm²

Current Consumption:

100 mA

[Uimp] Rated Impulse Withstand Voltage:

0.8 kV

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-10-50 °C

[Us] Rated Supply Voltage:

24 V

Mercury Free:

Yes

Product Certifications:

UL

Device Short Name:

XVC

Net Weight:

0.56 kg

Height:

508.5 mm

Marking:

CE

Cable Length:

600 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile:

ENVEOLI1904008EN

Warranty:

18 months

Standards:

IEC 61000-6-3 || IEC 61000-6-2

Range Of Product:

Harmony XVC4

Beacon Or Indicator Bank Unit Type:

4 illuminated units

Sound Signalling:

without

Component Name:

XVC

Flashing Frequency:

1 Hz

Overvoltage Category:

class I IEC 61140

Product Mounting:

on support tube, 17 mm

Protective Treatment:

TC
